IF.UG.IM_R1
Note:

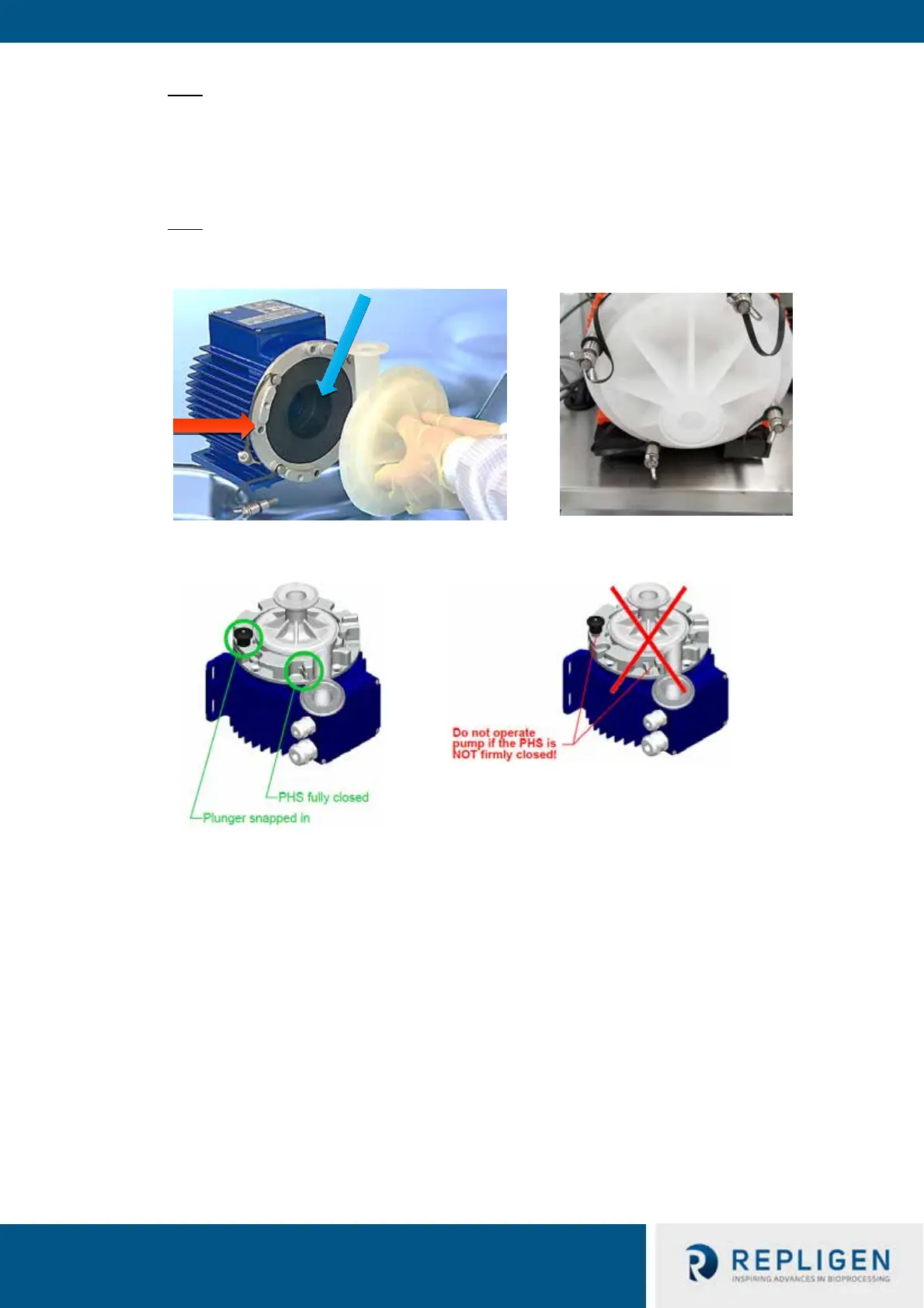

• A strong magnetic force will suddenly pull the pump head into the motor socket. Be
careful not to pinch finger between pump head and motor.
• To avoid rubber straps being tangled, pull them out of the way during this step.
3. Use fixation screws to secure pump heads to the motor
Note:
Hand-tight is enough because the screws are only used to the keep pump head in place.
Overtightening these screws may cause damages.
4. Alternatively, if the pump has Head Socket, rotate the top ring CCW until the plunger is
snaps in and Pump Head Socket (PHS) is firmly closed.
