IF.UG.IM_R1
If Hollow Fiber Filter is Used (continue with these steps):
5. On Support stand, locate two black clamps and set them open.
6. Align the components below:
• Outlet of Recirculation pump head.
• Inlet of Hollow Fiber filter assembly.
• Centers of two clamps.
Note:
• Make sure the clamps attach to the clear section of the housing, not on end fittings.
7. Close the clamps, one by one.
Note:
• Inspect the filter and pump before tightening clamps in place. There should be no strain
placed upon any of the filter, pressure sensor, or pump connections.
• Make sure pump is not tilting or being pulled off center since the integrity of the set up
could be compromised.
• Check and hand-tighten any Tri-Clamps on the assembly.

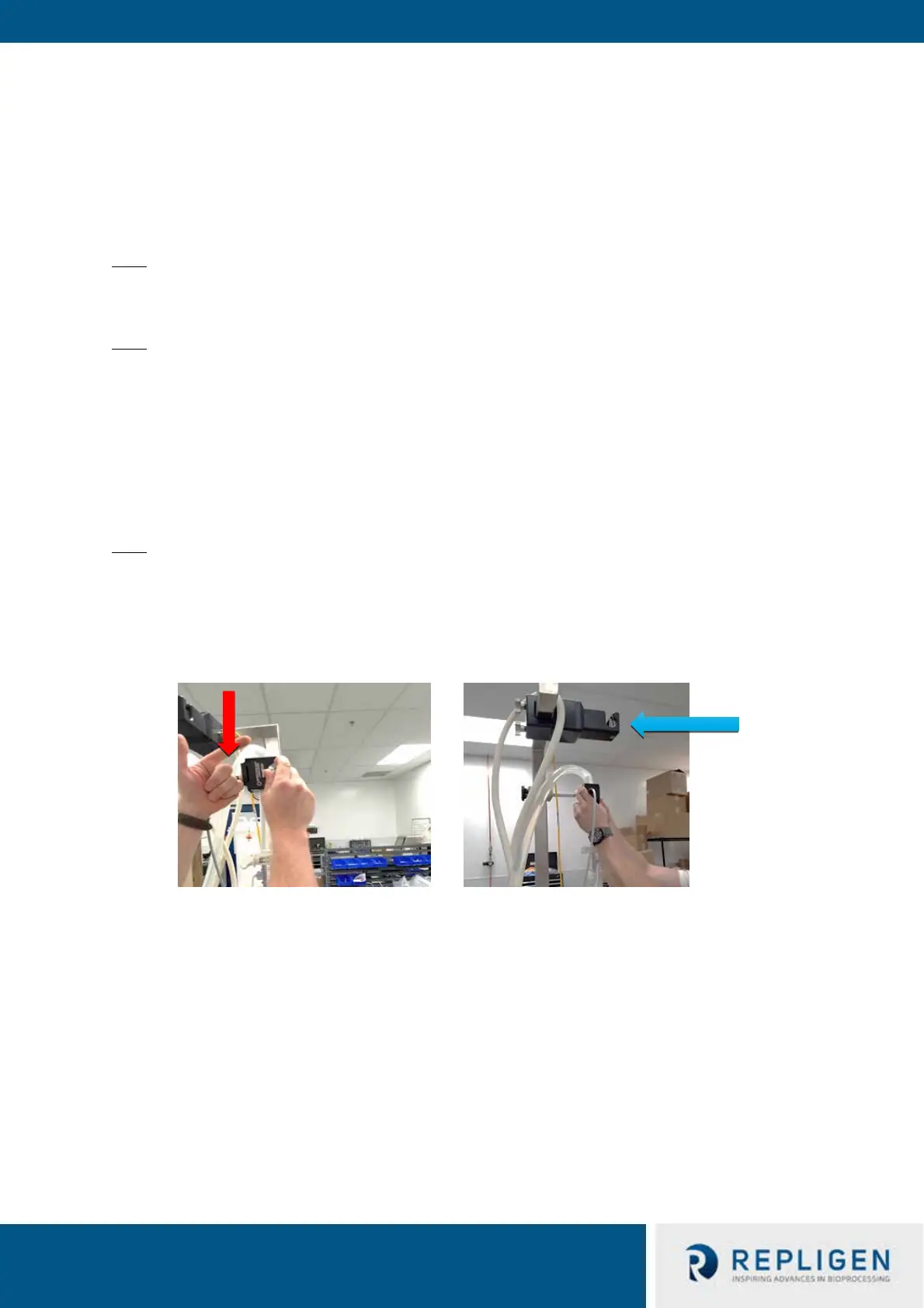

8. Open the “door” of the flow meter, place tubing inside the channel Run retentate through
the flow meter (Red Arrow). Make sure tubing is clean and free of debris.
Note:
• Leave 10 to 15 cm (4 to 6 in.) of straight run tubing on each side of the flow meter.
• Make sure the tubing flow direction arrow on meter should point in up direction.
9. Position retentate tubing through the open part of the back-pressure valve. Pushing the
tubing into the valve and making sure it rests totally within the cavity of the valve
(Blue Arrow)
To Next Page
