If Cassette Filter is Used (continue with these steps):
5. Make sure the Cassette Assembly has been properly prepared and torqued.

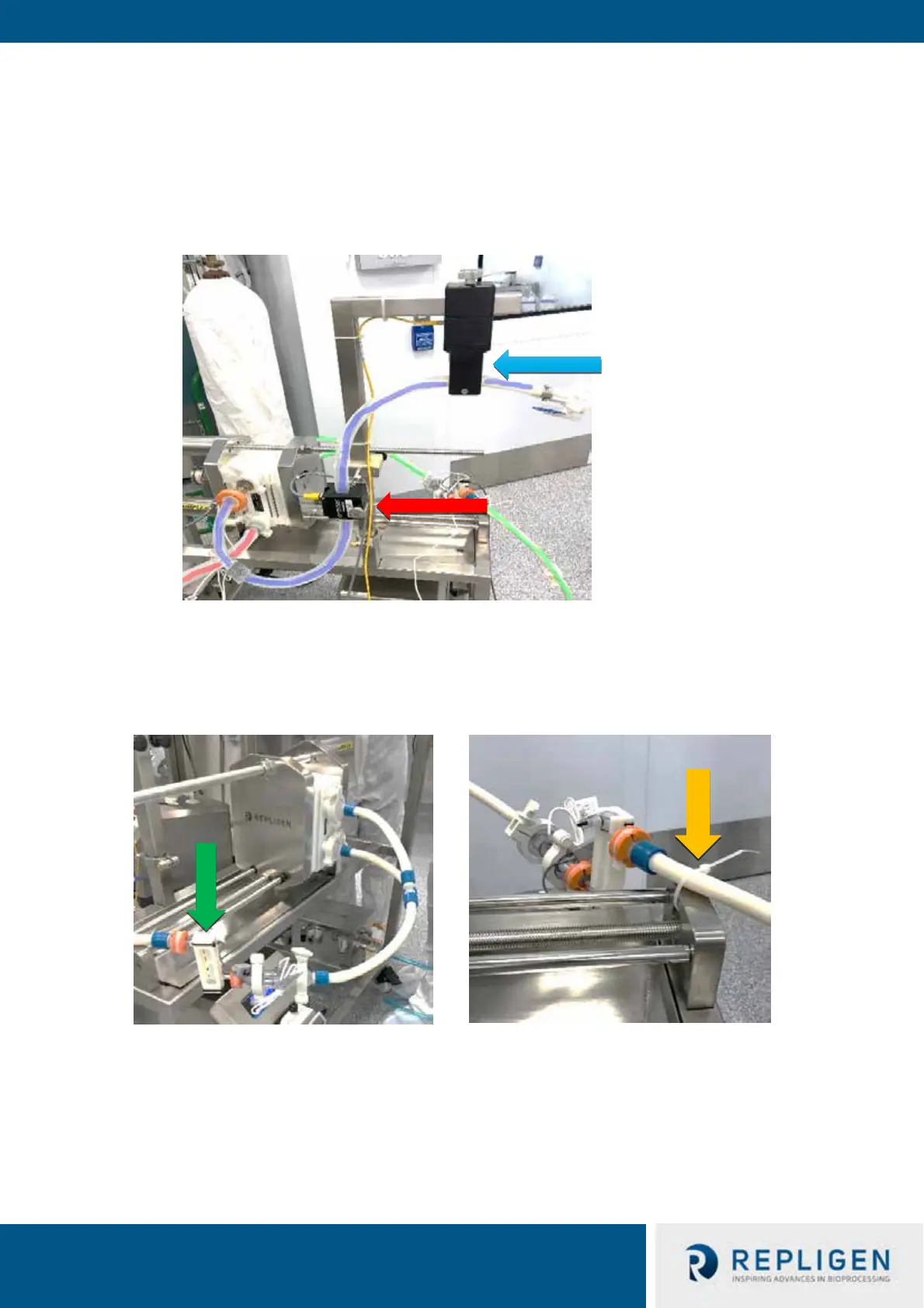

6. Open the “door” of the flow meter, place tubing inside the channel. Run retentate through
the flow meter (Red Arrow). Make sure tubing is clean and free of debris.
7. Position retentate tubing through the open part of the valve. Pushing the tubing into the
valve and making sure it rests totally within the cavity of the valve (Blue Arrow).
10. Make sure the flow through ultrasonic flow meter is in the vertical position with outlet at
the top, so air bubbles will not be trapped in the meter (Green Arrow).
11. Secure the flow meter, by tying it to the base plate of the cassette holder (Orange Arrow).
