7.6 CFC Mode Setup
NOTE: Permeate Pump is optional and shown in the diagram as an example for applications that
require permeate control.
1. Auxiliary Pumps
a. Connect auxiliary pump to the Auxiliary Component Cable's "Auxiliary Pump 1" port
and second auxiliary pump to the Auxiliary Component Cable's "Auxiliary Pump 2"
port
b. Connect auxiliary pump power cables
c. The Auxiliary Pump 1 will function as Constant Feed Pump
2. Auxiliary Scales
a. Connect first scale to the Auxiliary Component Cable’s “Feed Scale” port and second
scale to the Auxiliary Component Cable’s “Permeate Scale” port

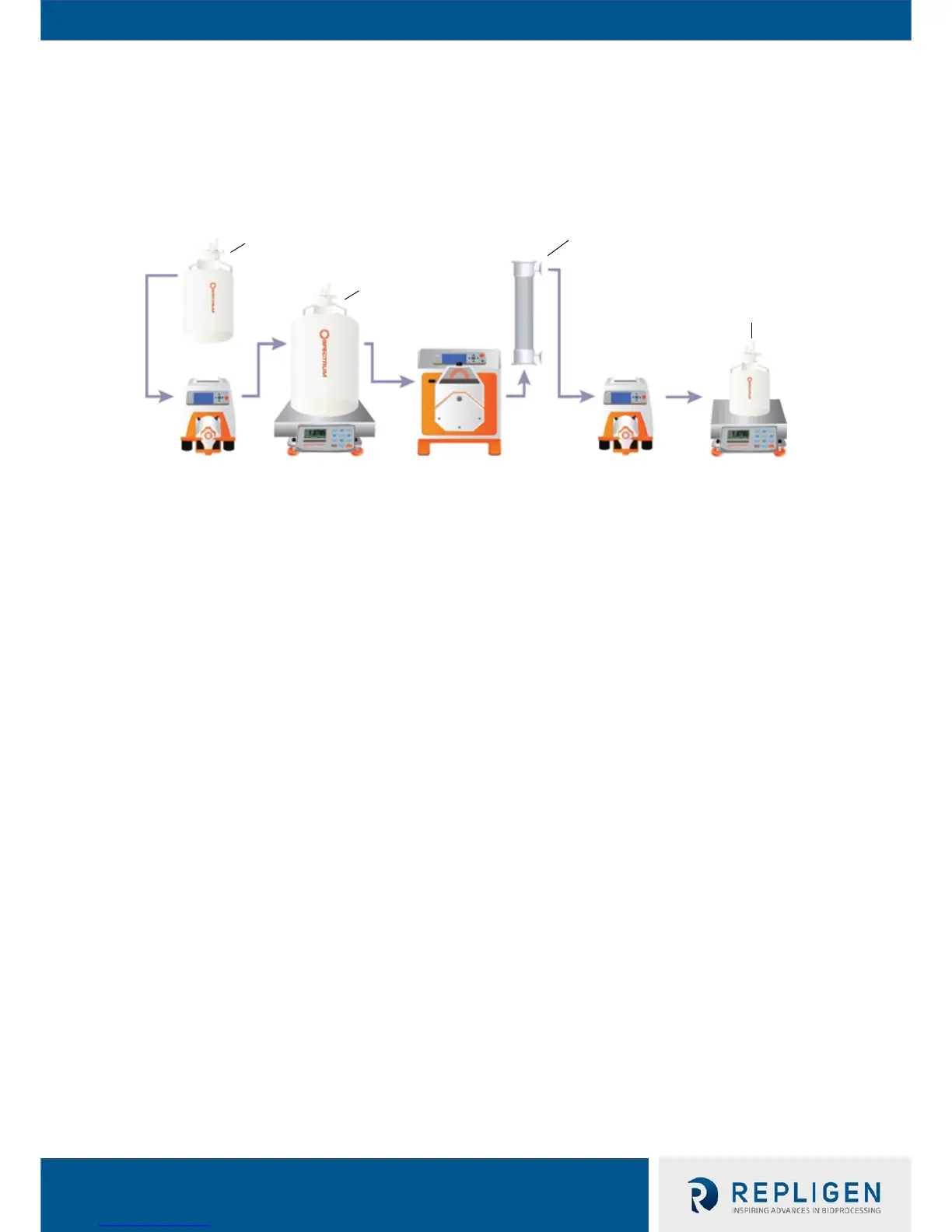

Extra Feed Reservoir
Module
Feed Reservoir
Permeate Reservoir
Diafiltration Pump
(Auxiliary Pump 1)
KMPi Pump
Permeate Pump
(Auxiliary Pump 2)
Permeate Scale
Feed Scale
