ResMed Astral 100 Series User Manual

The Astral device
6
Description
4
Alarm mute/reset button
Illuminates when an alarm is triggered and flashes when the sound is muted.
5
Alarm bar
Flashing red High priority alarm
Flashing yellow Medium priority alarm
Constant yellow Low priority alarm

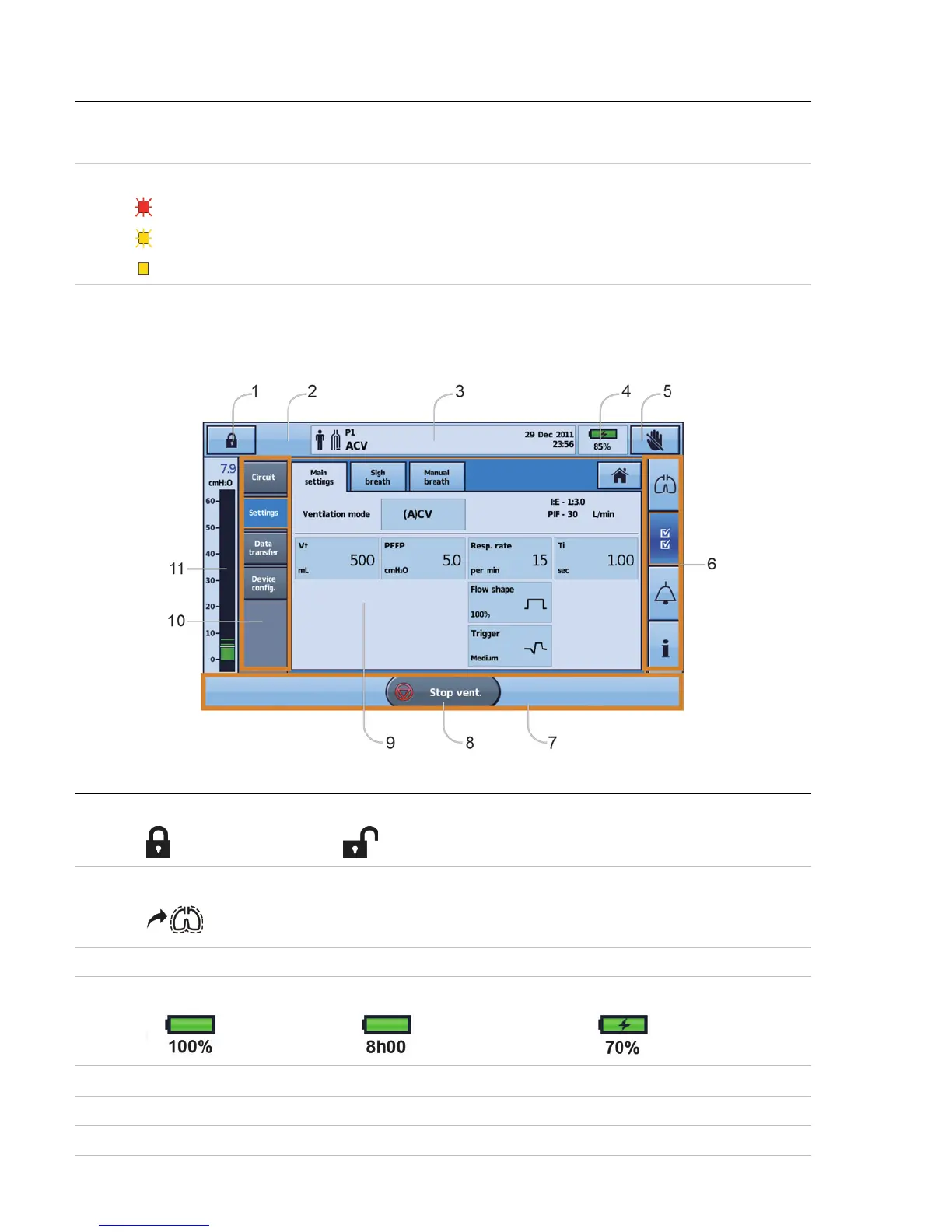

Touch screen
The main method of interacting with the Astral device is via the touch screen. The display on the touch
screen changes according to the function being performed.
Description
1
Clinical mode access button
Locked Unlocked
2
Manual breath button
only shown if enabled
3
Information bar
4
Internal battery indicator
5
Lock touch screen button
6
Menu bar
7
Bottom bar

ResMed Astral 100 Series Specifications

General

Device Type	Portable Ventilator
Max Pressure	60 cm H2O
Operating Temperature	5°C to 40°C (41°F to 104°F)
Operating Humidity	10% to 95% relative humidity, non-condensing
Display	Color LCD touchscreen
Modes of Ventilation	CPAP
Data Storage	SD card
Alarms	Adjustable visual and audible alarms
Tidal Volume	50 to 2500 mL
Inspiratory Time	0.3 – 5 seconds
FiO2 Monitoring	Yes
Power Supply	AC 100 – 240V, 50/60 Hz
Oxygen Compatibility	Yes
Pressure Range	4 – 60 cm H2O
PEEP	4 to 25 cm H2O
