ResMed Astral 100 Series User Manual

Using the Astral device
English 17
Setup menu

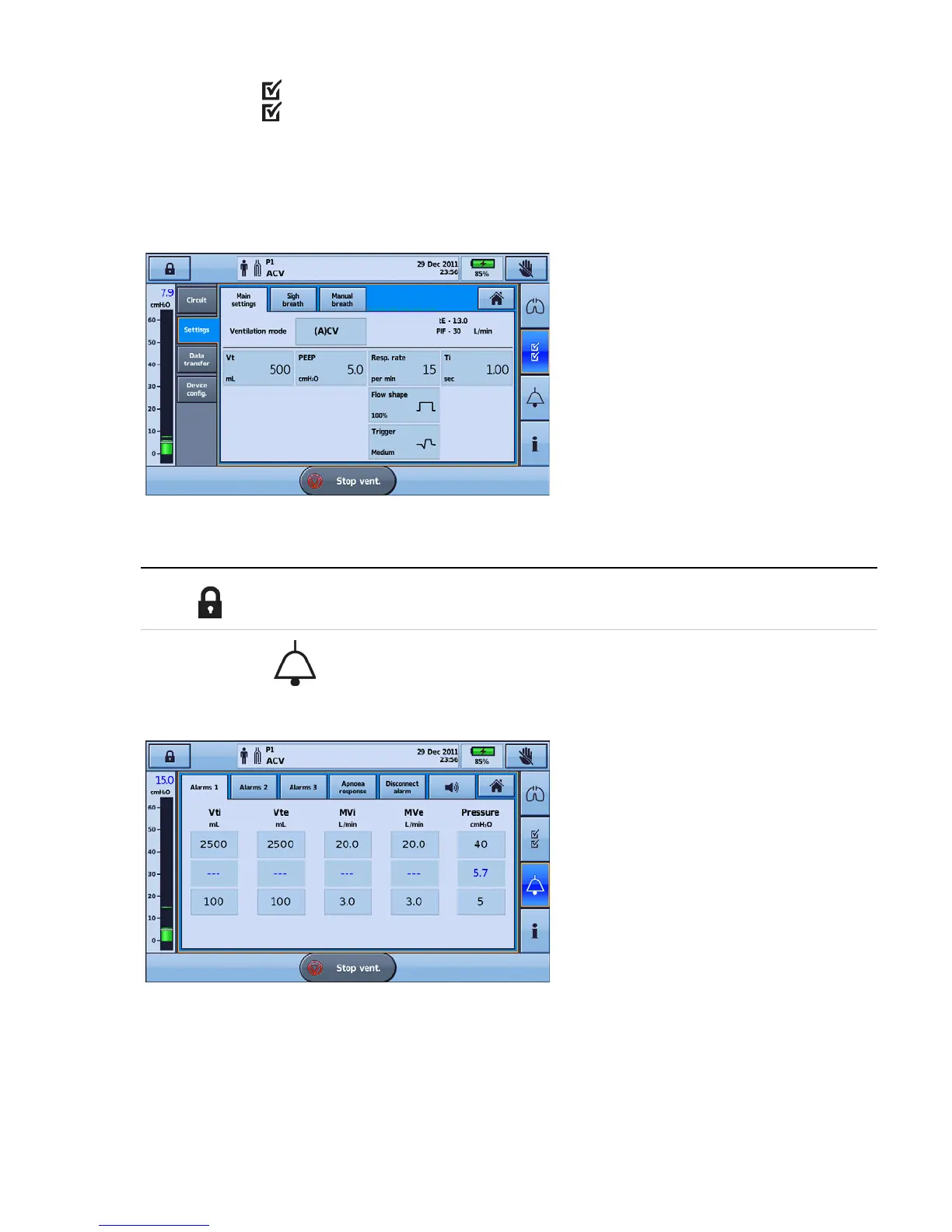

The Setup menu displays four different sub-menus:
• Circuit—to view the circuit
• Settings—to view the ventilation mode and access Manual Breath and Sigh Breath screens
• Data Transfer—to transfer data between the device and a personal computer via a USB stick
• Device Config.—to change the device configuration.
Helpful hint!
Therapy and alarm settings can be viewed as 'read only' in Patient mode (ie, with Clinical mode
locked .
Alarms menu
The Alarms menu displays the individual thresholds for each alarm to trigger. Real-time values are
displayed between the upper and lower thresholds.

ResMed Astral 100 Series Specifications

General

Device Type	Portable Ventilator
Max Pressure	60 cm H2O
Operating Temperature	5°C to 40°C (41°F to 104°F)
Operating Humidity	10% to 95% relative humidity, non-condensing
Display	Color LCD touchscreen
Modes of Ventilation	CPAP
Data Storage	SD card
Alarms	Adjustable visual and audible alarms
Tidal Volume	50 to 2500 mL
Inspiratory Time	0.3 – 5 seconds
FiO2 Monitoring	Yes
Power Supply	AC 100 – 240V, 50/60 Hz
Oxygen Compatibility	Yes
Pressure Range	4 – 60 cm H2O
PEEP	4 to 25 cm H2O
