ResMed Astral 100 Series User Manual

The Astral device
8
Menu bar
The Menu bar provides access to the four main menus in the Astral device.
Monitors menu
View real-time patient data in either waveform or monitoring formats including pressure, flow, leak, tidal
volume, synchronisation and oximetry.
Setup menu
Configure and view ventilation therapy and device settings.
Alarms menu
Configure and view alarms including alarm volume.
Information summary menu
View therapy statistics, used hours, events, reminder and device information.

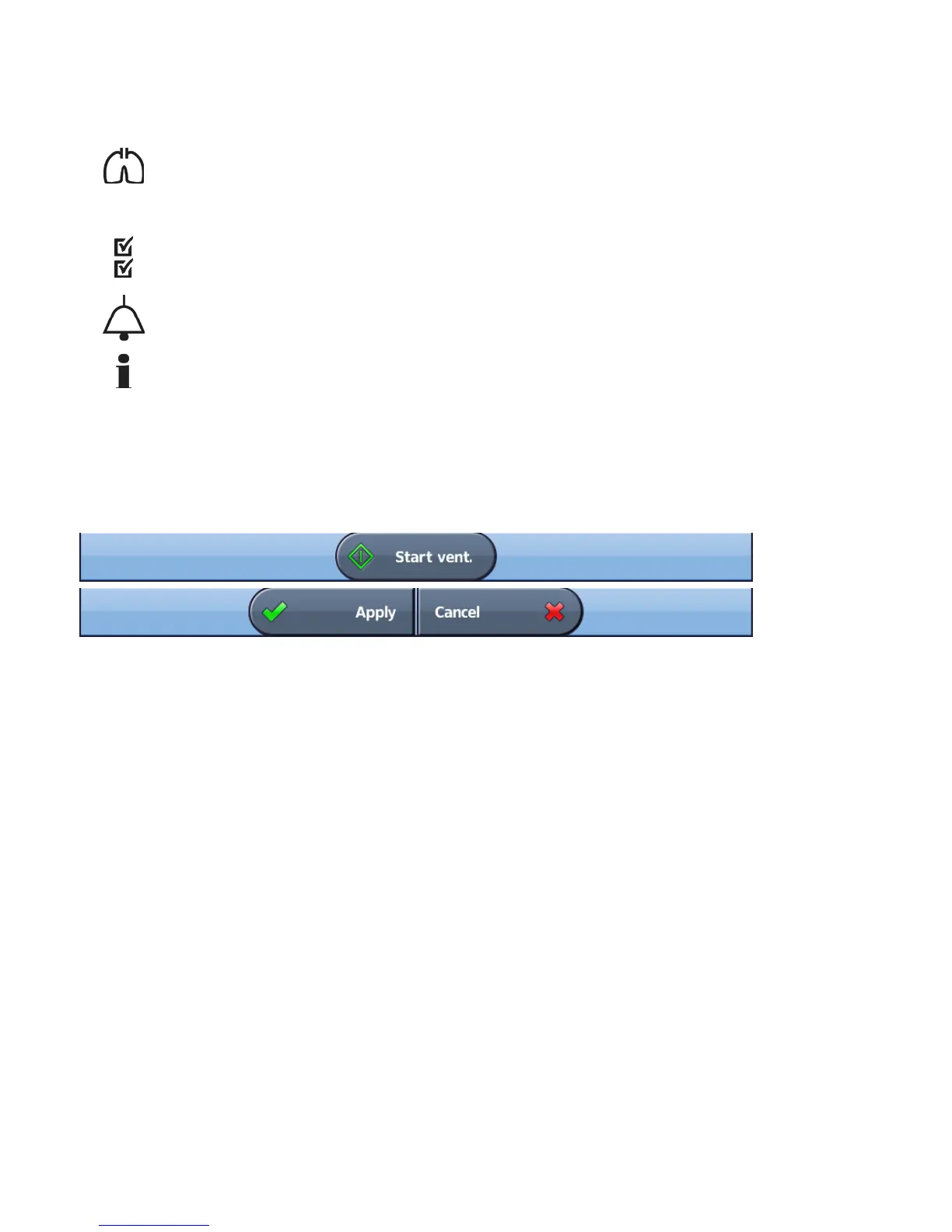

Bottom bar
The Bottom bar changes with the function of the device.
It can display buttons to Stop or Start ventilation and Apply or Cancel functions.

ResMed Astral 100 Series Specifications

General

Device Type	Portable Ventilator
Max Pressure	60 cm H2O
Operating Temperature	5°C to 40°C (41°F to 104°F)
Operating Humidity	10% to 95% relative humidity, non-condensing
Display	Color LCD touchscreen
Modes of Ventilation	CPAP
Data Storage	SD card
Alarms	Adjustable visual and audible alarms
Tidal Volume	50 to 2500 mL
Inspiratory Time	0.3 – 5 seconds
FiO2 Monitoring	Yes
Power Supply	AC 100 – 240V, 50/60 Hz
Oxygen Compatibility	Yes
Pressure Range	4 – 60 cm H2O
PEEP	4 to 25 cm H2O
