ResMed Astral 100 Series User Manual

Using the Astral device
English 11
Powering on the device
To power on the Astral device, simply press the green power on/off button at the back of the device. The
device will perform a system check as shown on the main screen.

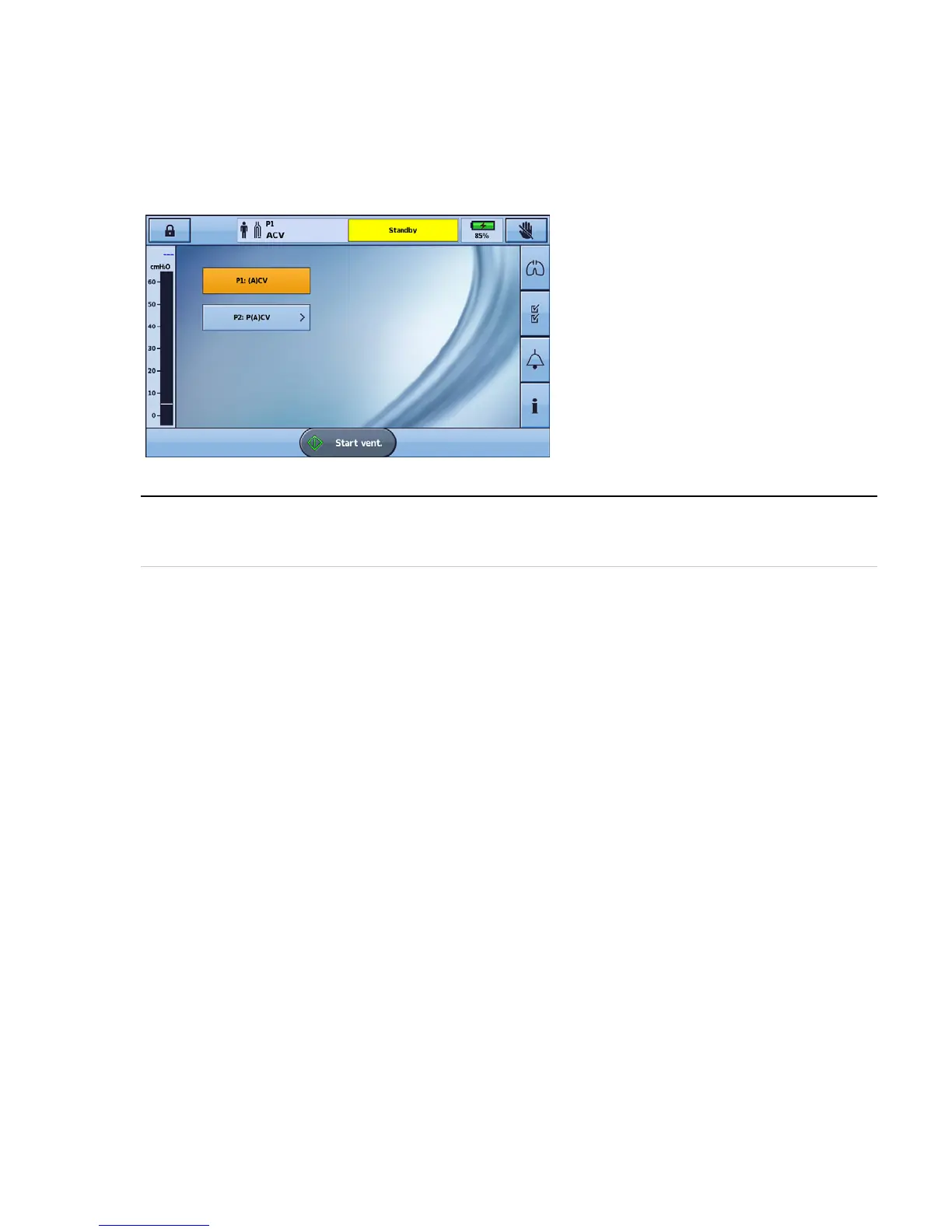

On completion of the system check, the Patient Home screen and active program is displayed.
Note: Settings configured in the active program will be used when ventilation is started.
Helpful hint!
If more than one program displays on the Patient Home screen, the active program will be highlighted
orange. For further information, refer to Programs (see page 19).
For information on powering the Astral device, refer to Power (see page 38).
Powering off the device
The Astral device can only be powered off when ventilation is stopped.
Removing AC power does not power off the device. The device remains powered on internal battery.
Turning off the device must be done manually and must be performed before leaving the device
disconnected from AC power for any extended period of time. Failure to do so may result in battery
depletion and activation of alarms.
To power off the device, press the green on/off button at the back of the device and follow the on-screen
prompts. To ensure the device is fully powered down, touch the screen.
Note: While the device remains connected to external mains power, the internal battery continues to charge.

ResMed Astral 100 Series Specifications

General

Device Type	Portable Ventilator
Max Pressure	60 cm H2O
Operating Temperature	5°C to 40°C (41°F to 104°F)
Operating Humidity	10% to 95% relative humidity, non-condensing
Display	Color LCD touchscreen
Modes of Ventilation	CPAP
Data Storage	SD card
Alarms	Adjustable visual and audible alarms
Tidal Volume	50 to 2500 mL
Inspiratory Time	0.3 – 5 seconds
FiO2 Monitoring	Yes
Power Supply	AC 100 – 240V, 50/60 Hz
Oxygen Compatibility	Yes
Pressure Range	4 – 60 cm H2O
PEEP	4 to 25 cm H2O
