ResMed Astral 100 Series User Manual

Alarms
English 45
Alarms
The Astral device activates alarms to alert you to conditions that require attention to ensure patient
safety. When an alarm is activated, the Astral device provides both audible and visual alerts, and displays
an alarm message in the Alarm display on the Information bar.
As part of the alarm system (eg, the overpressure protection and system alarms), Astral may perform an
automatic restart. An automatic restart checks systems and ensures correct operation of the alarm.
As soon as the activation condition is met, the Astral device provides both audible and visual alerts
without delay.

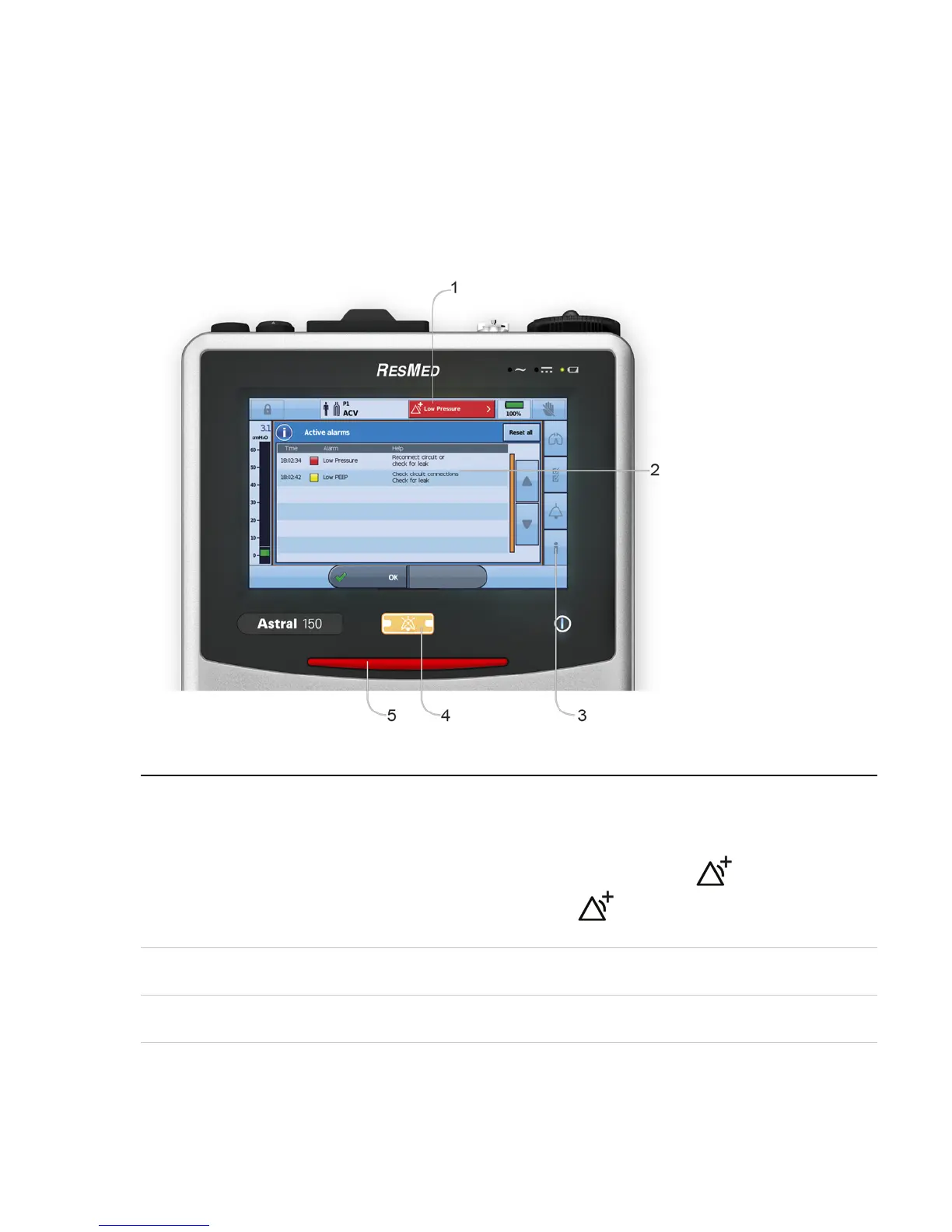

Indicator Description
1
Alarm display
Displays either the alarm message for the highest priority active alarm, or the last
alarm not yet reset.
Press the Alarm display for further alarm information.
Certain conditions may result in multiple alarms.
indicates that there are
multiple active alarms. Press
when displayed to view all alarms and
respond appropriately. Alarms are displayed in order of priority.
2
Active Alarms screen
Displays the full set of active alarms. Will automatically display upon activation of
an alarm in Patient mode.
3
Information menu
Some alarms clear automatically. To view a history of alarms, view the alarm log
through the Information menu.

ResMed Astral 100 Series Specifications

General

Device Type	Portable Ventilator
Max Pressure	60 cm H2O
Operating Temperature	5°C to 40°C (41°F to 104°F)
Operating Humidity	10% to 95% relative humidity, non-condensing
Display	Color LCD touchscreen
Modes of Ventilation	CPAP
Data Storage	SD card
Alarms	Adjustable visual and audible alarms
Tidal Volume	50 to 2500 mL
Inspiratory Time	0.3 – 5 seconds
FiO2 Monitoring	Yes
Power Supply	AC 100 – 240V, 50/60 Hz
Oxygen Compatibility	Yes
Pressure Range	4 – 60 cm H2O
PEEP	4 to 25 cm H2O
