ResMed Astral 100 Series User Manual

Using the Astral device
16

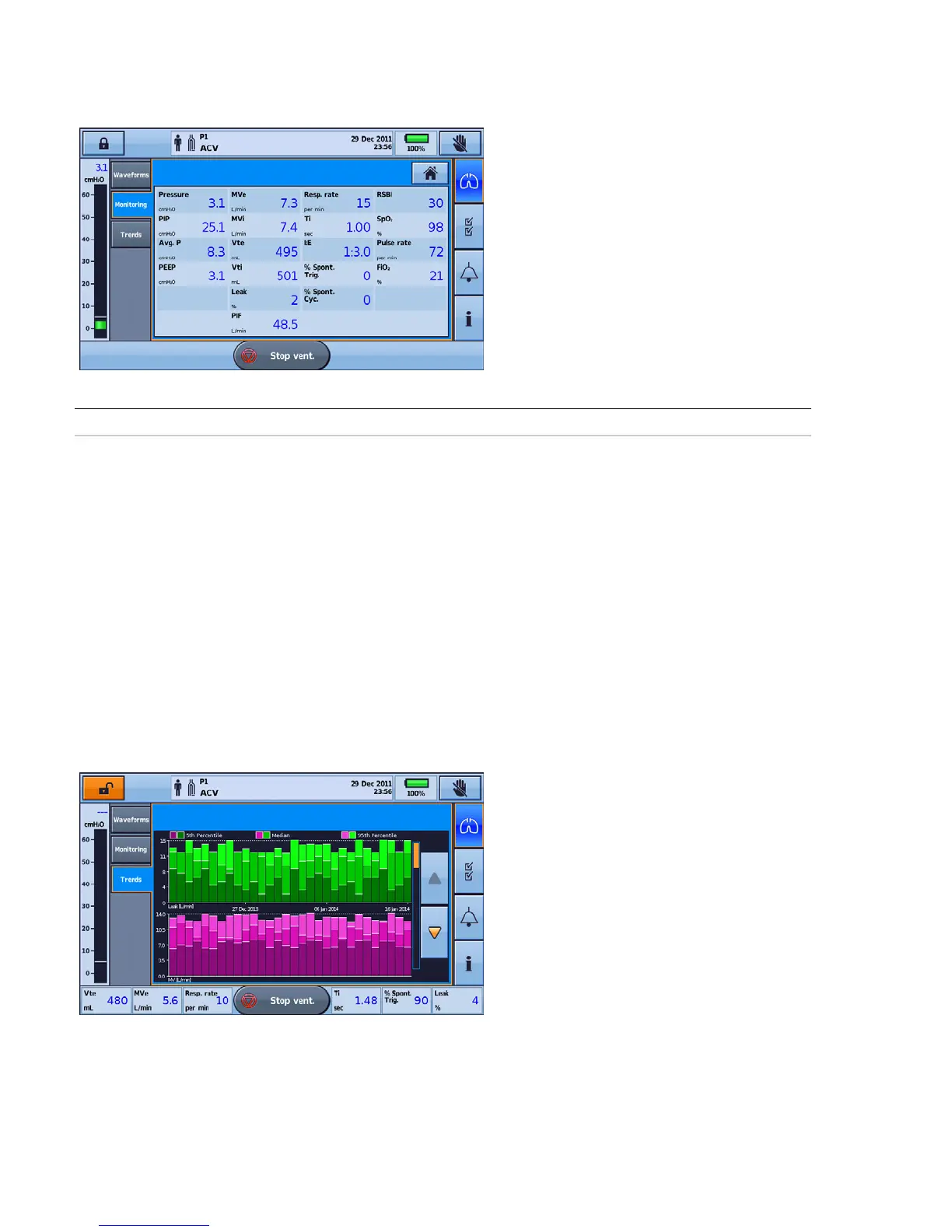

Monitoring screen
The Monitoring screen displays all measured parameters in numerical form.
Helpful hint!
Your care provider may ask you to access this screen and report values from time to time.
Trends screen
The Trends screen shows the 5th and 95th percentile values, as well as the median for the last 30 days
for each of the following parameters:
• Leak
• Minute ventilation
• Peak inspiratory pressure
• Tidal volume
• Respiratory rate
• Inspiratory time
• SpO
2
• Pulse rate
• FiO
2
• Alveolar ventilation.
Information is displayed as bar graphs, with two graphs per screen.
Use the up and down scroll arrows to cycle through the graphs.

ResMed Astral 100 Series Specifications

General

Device Type	Portable Ventilator
Max Pressure	60 cm H2O
Operating Temperature	5°C to 40°C (41°F to 104°F)
Operating Humidity	10% to 95% relative humidity, non-condensing
Display	Color LCD touchscreen
Modes of Ventilation	CPAP
Data Storage	SD card
Alarms	Adjustable visual and audible alarms
Tidal Volume	50 to 2500 mL
Inspiratory Time	0.3 – 5 seconds
FiO2 Monitoring	Yes
Power Supply	AC 100 – 240V, 50/60 Hz
Oxygen Compatibility	Yes
Pressure Range	4 – 60 cm H2O
PEEP	4 to 25 cm H2O
