Air tubing technical specifications
ClimateLine heated air tubing Flexible plastic and electrical components,
6’6” (2 m), 0.6” (15 mm) inner diameter
ClimateLine
MAX
heated air tubing Flexible plastic and electrical components,
6’3” (1.9 m), 0.75” (19 mm) inner diameter
SlimLine air tubing Flexible plastic,
6’ (1.8 m), 0.6” (15 mm) inner diameter
Standard air tubing Flexible plastic,
6’6” (2 m), 0.75” (19 mm) inner diameter
ClimateLine temperature cut-out ≤ 106°F (≤ 41°C)
Notes:
• The manufacturer reserves the right to change these specifications without notice.
• The temperature and relative humidity settings displayed for Climate Control are not measured
values.
Humidifier performance
The following settings have been tested at 22°C (71.6°F) ambient temperature:
CPAP mask
pressure cm H
2
O
RH output %
Setting 3 Setting 6
Nominal system output AH
1
, BTPS
2
Setting 3 Setting 6
4 90 100 10
18
10 95 100 11. 5
21
20 95 100 11
18
1
AH- Absolute Humidity in mg/L.
2
BTPS- Body Temperature Pressure Saturated.

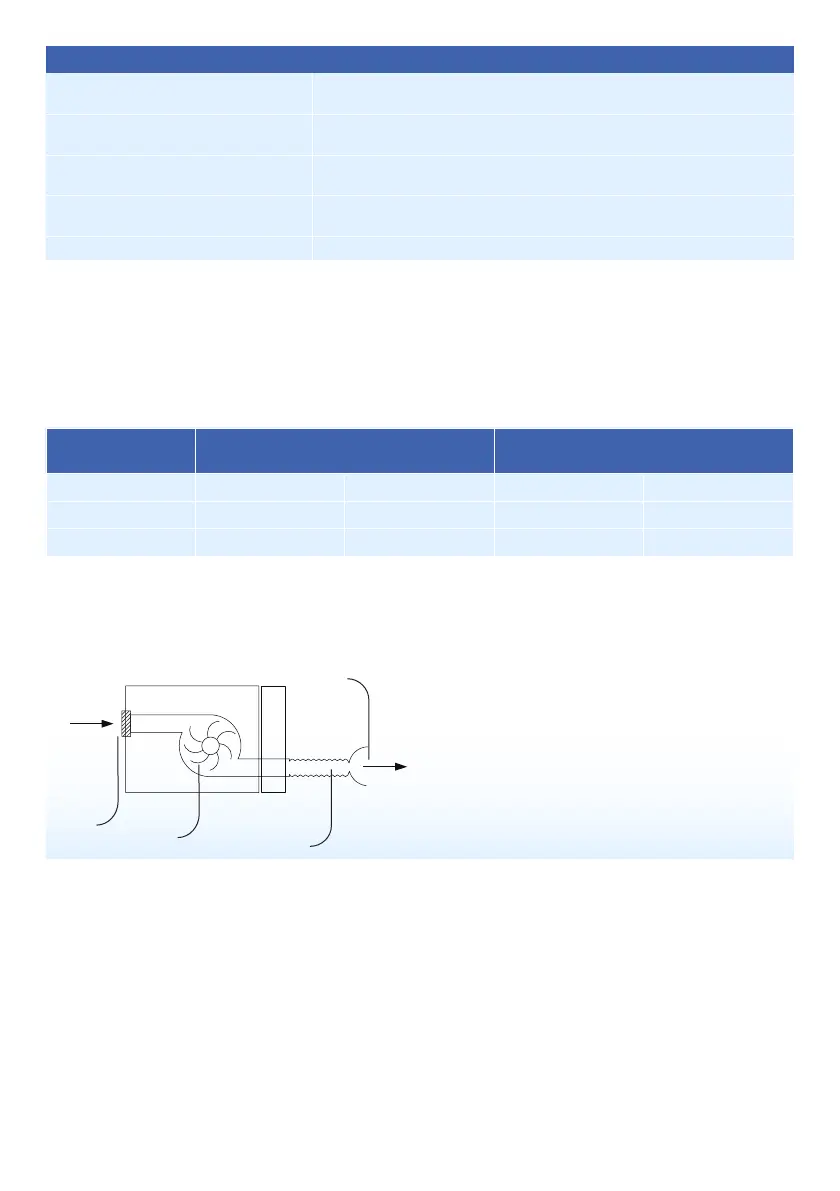

Pneumatic flow path
Inlet
filter
Blower
Tube
Mask
S9 Series H5i
368220.indb 30 6/09/2011 9:22:28 AM

ResMed S9 Series Specifications

General

Data Storage	SD card
Device Type	CPAP Machine
Pressure Range	4 to 20 cm H2O
Sound Level	24 dB
Power Supply	100-240V AC, 50/60Hz
Therapy Modes	CPAP, VPAP ST, VPAP Auto
Altitude Adjustment	Yes
Operating Temperature	+41°F to +95°F (+5°C to +35°C)
Operating Humidity	10% to 95% non-condensing
AC Voltage	100-240V AC
Humidifier	optional
Ramp	Yes
