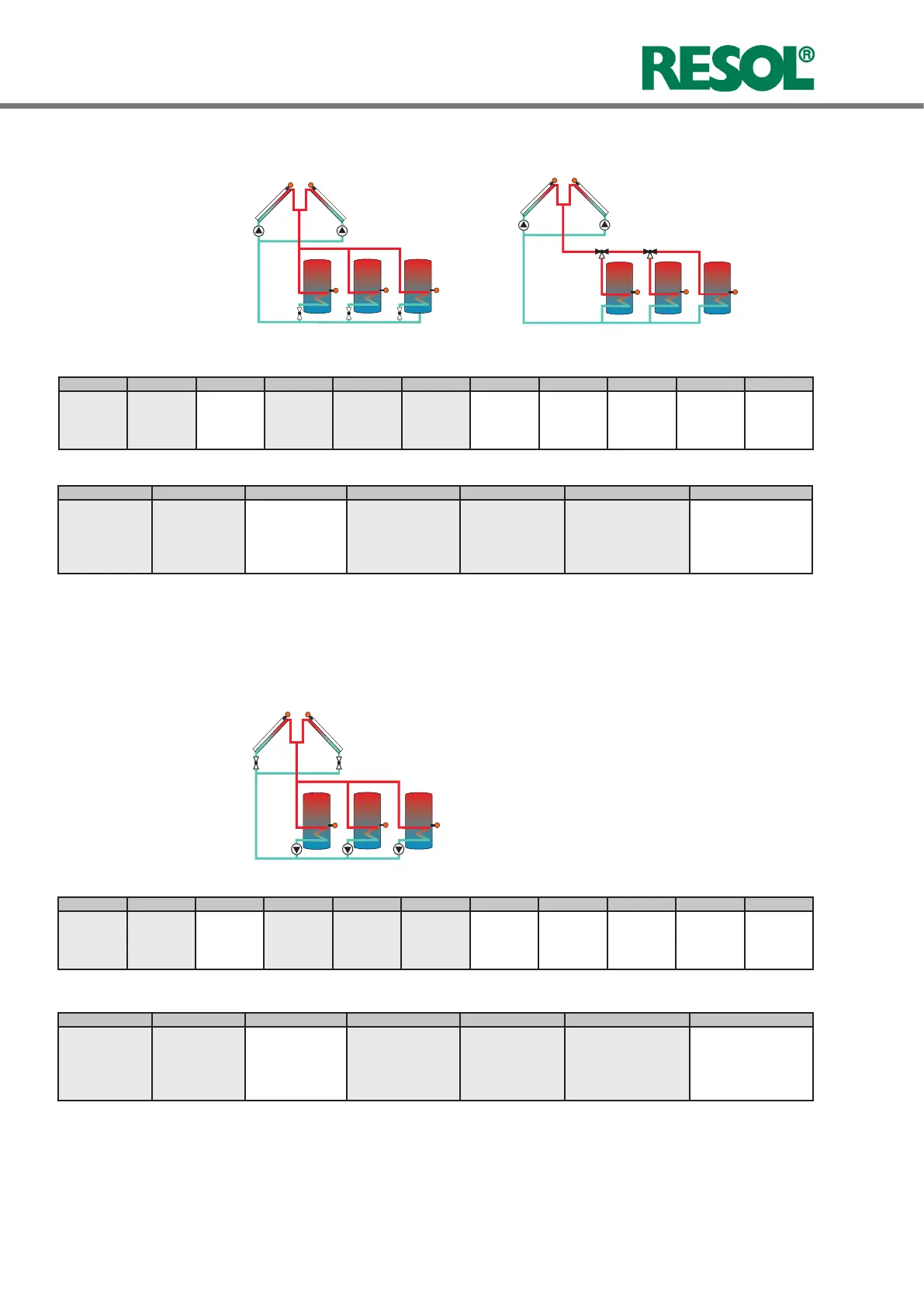

Resol DeltaSol E - Page 22

relay allocation
sensor allocation
sen.1 sen.2 sen.3 sen.4 sen.5 sen.6 sen.7 sen.8 sen.9 sen.10 V40
Tcol
Tstb
HSE
Th 1
T1-DT5
Tby
T-HE
Th 2
T2-DT5
Tst2b
Tst3b Tcol2 --- ---
Th 9
T1-DT9
T1 WMZ
Th 10
T2-DT9
T2 WMZ
WMZ
relay 1 relay 2 relay 3 relay 4 relay 5 relay 6 relay 7
pump col. 1 pump col. 2
func. bl. 1
HSE
bypass
par. relay
ext. HE
2 PV store 1
(3 PV store 1)
2 PV store 2
(3 PV store 2)
2 PV store 3
(---)
func. bl. 5
message rel.
AH suppress.
System 6 Variante 1
relay allocation
sensor allocation
sen.1 sen.2 sen.3 sen.4 sen.5 sen.6 sen.7 sen.8 sen.9 sen.10 V40
Tcol
Tstb
HSE
Th 1
Tby
T-HE
T1-DT5
Th 2
Tstp2b
T2-DT5
Tst3b Tcol2 --- ---
Th 9
T1-DT9
T1 WMZ
Th 10
T2-DT9
T2 WMZ
WMZ
relay 1 relay 2 relay 3 relay 4 relay 5 relay 6 relay 7
solar pump st1 solar pump st2
func. bl. 1
HSE
bypass
par. relay
ext. HE
solar pump st3 2-PV col.1 2-PV col.2
func. bl. 5
message rel.
AH suppress.
System 6 variant 2
S1
S5
R1
S4
R2
R6
R4 R5
S6
S2
S1
R1
R2
S6
S2
R4 R5
S1
S5
R5
S2
S4
R6
R4
R1
R2
S6
S5
S4
DeltaSol
®
E
