System 6: 2-store solar system with pump logic
The controller compares the temperature at sensor S1 to the temperatures at
sensors S2 and S4. If the measured temperature differences are higher than the ad-
justed switch-on temperature differences, the pump (R1 and/or R2) will be activat-
ed and the corresponding store will be loaded up to the adjusted store maximum
or set temperature respectively at most. The priority logic effects prior loading of
store 1.

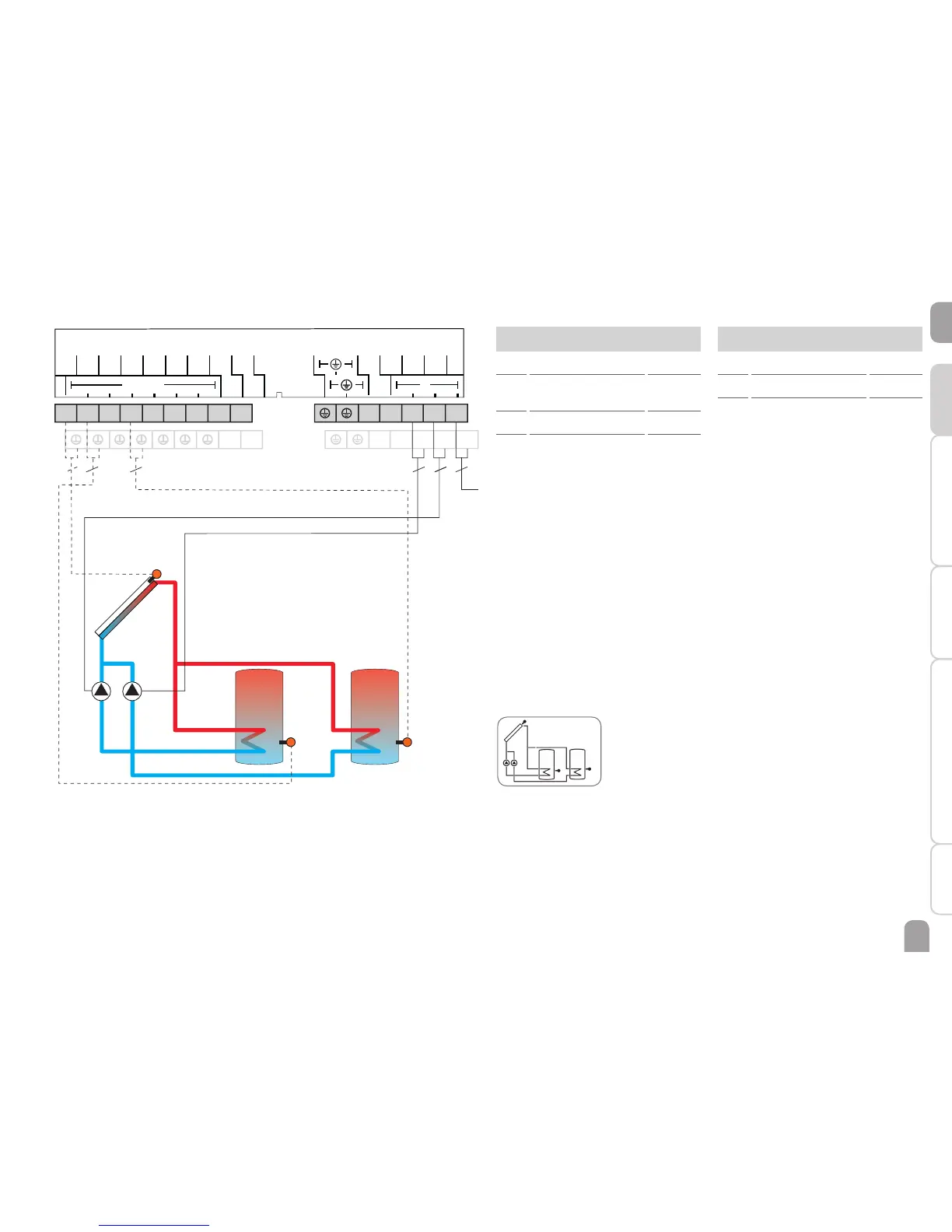

System 6 system screen
R2R1
S4
S2
S1
N N N N
10 11
2
332
2
3
VBus
VBus
V40
S4
S3
GND
Sensors
Relais
S2
S1
N
R2
R1
L
R4
R4
R2 R1 L
1234
56789
PWM A
PWM B
Temperature sensors
S1 Temperature collector 1 / GND
S2 Temperature store
base
2 / GND
S3 Free 3 / GND
S4 Temperature store
2 base
4 / GND
Relay
R1 Solar pump store R1 / N / PE
R2 Solar pump store 2 R2 / N / PE
R4 Free R4 / R4
