Resol DeltaSol SLL User Manual

en
42

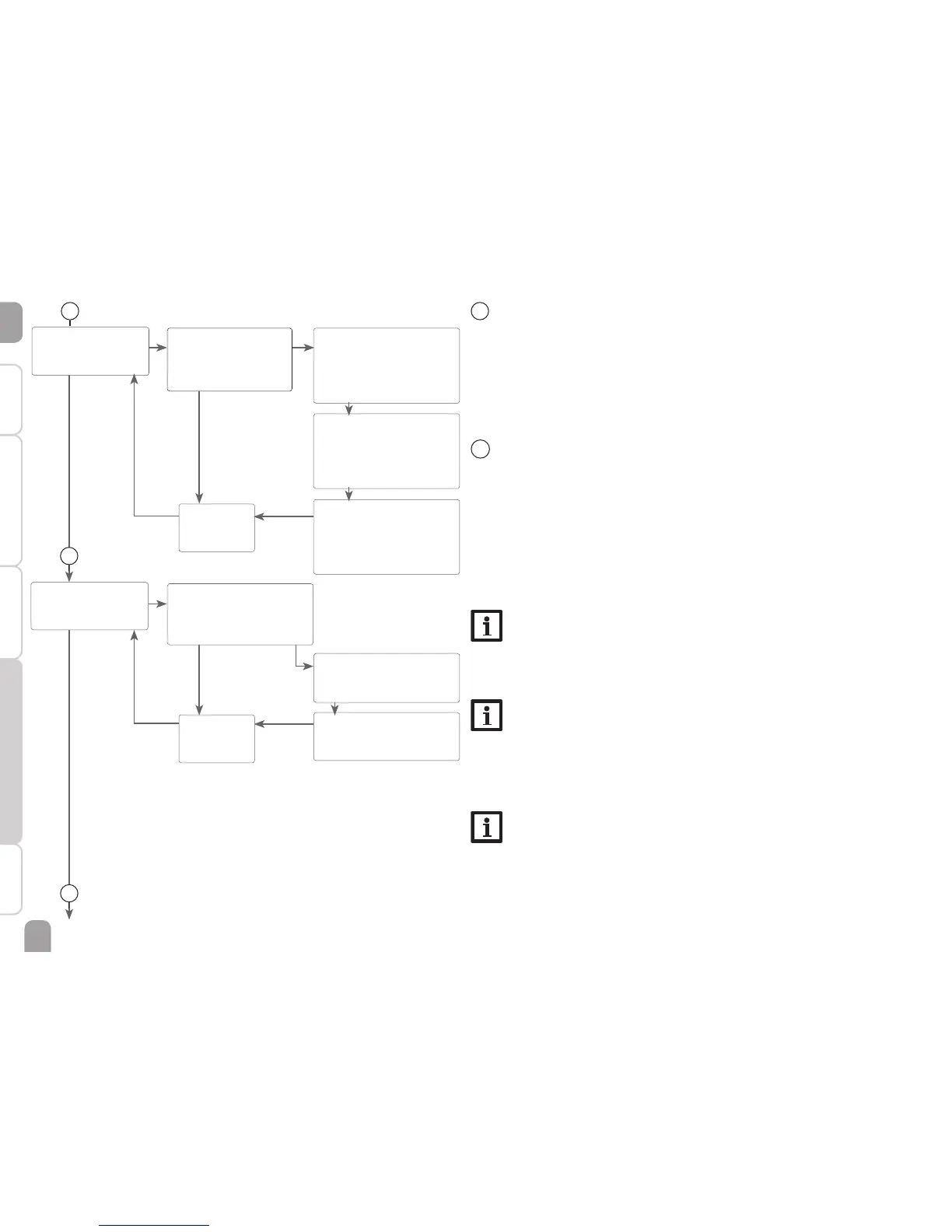

Installation Indications, functions and options MessagesCommissioningOperation and function
RPH 12
PUSH
DTRPO
Switch-on temperature diff.
Adjustment range:
1.0 … 50.0 K
Factory setting: 6.0 K
RPH
Return preheating
Selection: OFF / ON
Factory setting: OFF
DTRPF
Switch-on temperature diff.
Adjustment range:
0.5 … 49.5 K
Factory setting: 4.0 K
MNRPH
Minimum limitation
Adjustment range:
0.5 … 89.5 °C
Factory setting: 30.0 °C
12
Return preheating
The return preheating function can be used for transferring heat from a heat source
to the heating circuit return.
The relay (system-dependent) is energised when both switch-on conditions are fullled:
• the temperature difference between the sensors store return and heating circuit
return has exceeded the switch-on temperature difference.
• the temperature at the heating circuit return has exceeded the minimum temperature.
The switch-on hysteresis is -5 K.
12
14
OFF
ON
BACK
PUSH
REL (2) / Relay control
Selectionl: ONOF, Puls, PSOL,
PHEA, ADAP
Factory setting: PSOL
REL 13
PUSH
MAX (2) / Maximum speed
Adjustment range: 20 … 100 %
Factory setting: 100 %
MIN (2) / Minimum speed
Adjustment range: 20 … 100 %
Factory setting: 20 %
13
Relay control
With this parameter, the relay control type can be adjusted. The following types can
be selected:
Adjustment for standard pump without speed control
• ONOF : Pump on / pump off
Adjustment for standard pump with speed control
• PULS : Burst control via semiconductor relay
Adjustment for high-efciency pump (HE pump)
• PSOL : PWM prole solar pump
• PHEA : PWM prole heating pump
Note
For more information about connecting HE pumps, see page 18.
Minimum speed
In the adjustment channel MIN (2) a relative minimum speed for connected pumps
can be allocated to the outputs R1 and R2.
Note
When loads which are not speed-controlled (e. g. valves) are used, the pump
speed value of the corresponding relay must be set to 100 % or the control
type must be set to ONOF in order to deactivate pump speed control.
Maximum speed
In the adjustment channel MAX (2) a relative minimum speed for connected pumps
can be allocated to the outputs R1 and R2.
Note
When loads which are not speed-controlled (e. g. valves) are used, the pump
speed value of the corresponding relay must be set to 100 % or the control
type must be set to ONOF in order to deactivate pump speed control.
Relay allocation for PWM outputs:
PWM A - Relay 1
PWM B - Relay 2
13
ONOF Puls, PSOL,
PHEA
BACK
PUSH
