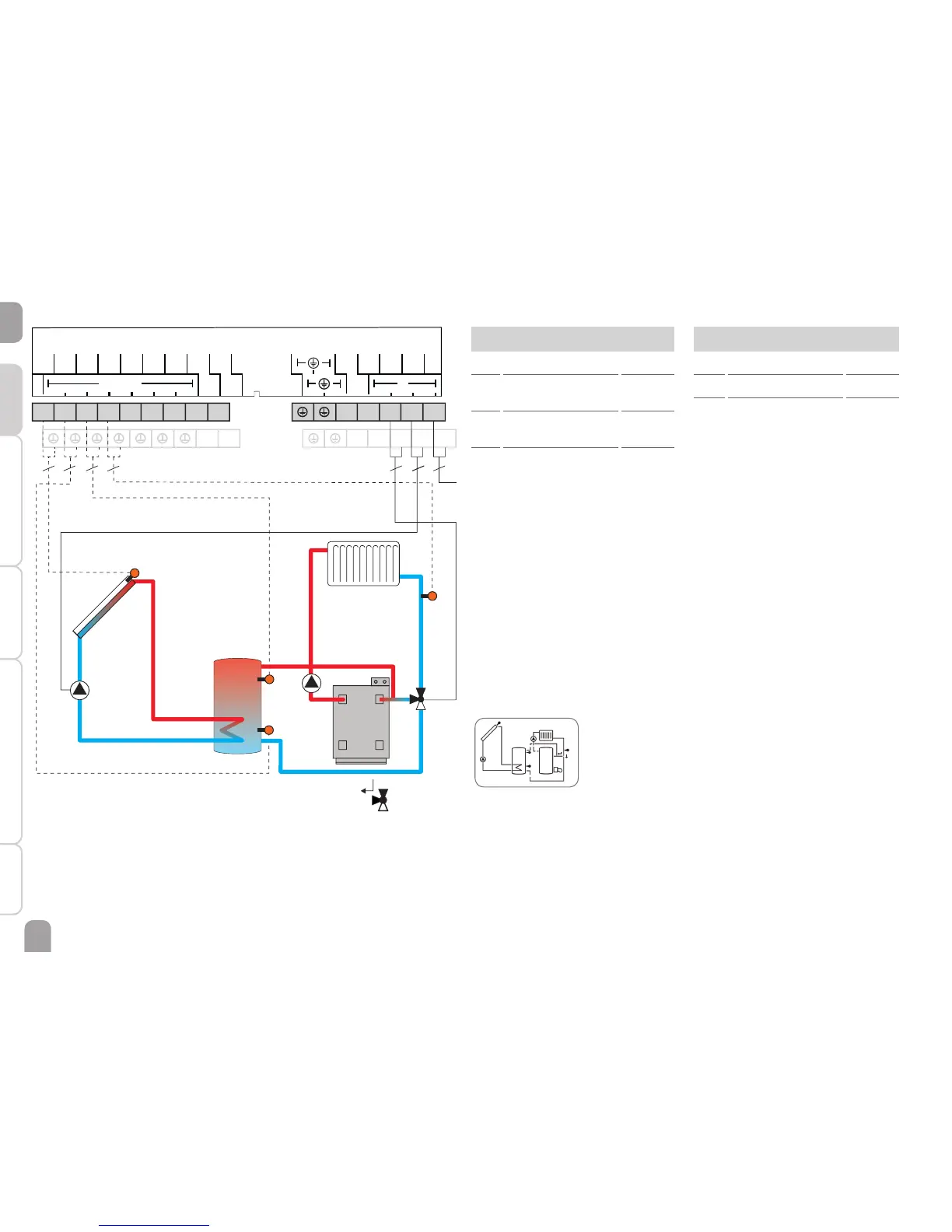

System 9: Solar system with 1 store and return preheating
The controller calculates the temperature difference between collector sensor S1
and store sensor S2. If the difference is larger than or identical to the adjusted
switch-on temperature difference, the pump (R1) will be switched on and the store
will be loaded until the switch-off temperature difference or the maximum store
temperature is reached.
With another temperature differential function (S3 heat source/S4 heat sink) return
preheating (heating circuit backup) is possible via another valve (R2).
System 9 system screen
Temperature sensors
S1 Temperature collector 1 / GND
S2 Temperature store
base
2 / GND
S3 Temperature store
return preheating
3 / GND
S4 Temperature heating
return
4 / GND
Relay
R1 Solar pump R1 / N / PE
R2 Valve return preheating R2 / N / PE
R4 Free R4 / R4
N N N N
10 11
2
332
2 2 3
VBus
VBus
V40
S4 S3
GND
Sensors
Relais
S2 S1
N
R2 R1
L
R4
R4
R2 R1 L
1234
56789
PWM A PWM B
R2
S4
S3
S2
S1
R1
Mains
Flow direction when
normally open
