2.2 Type Plates

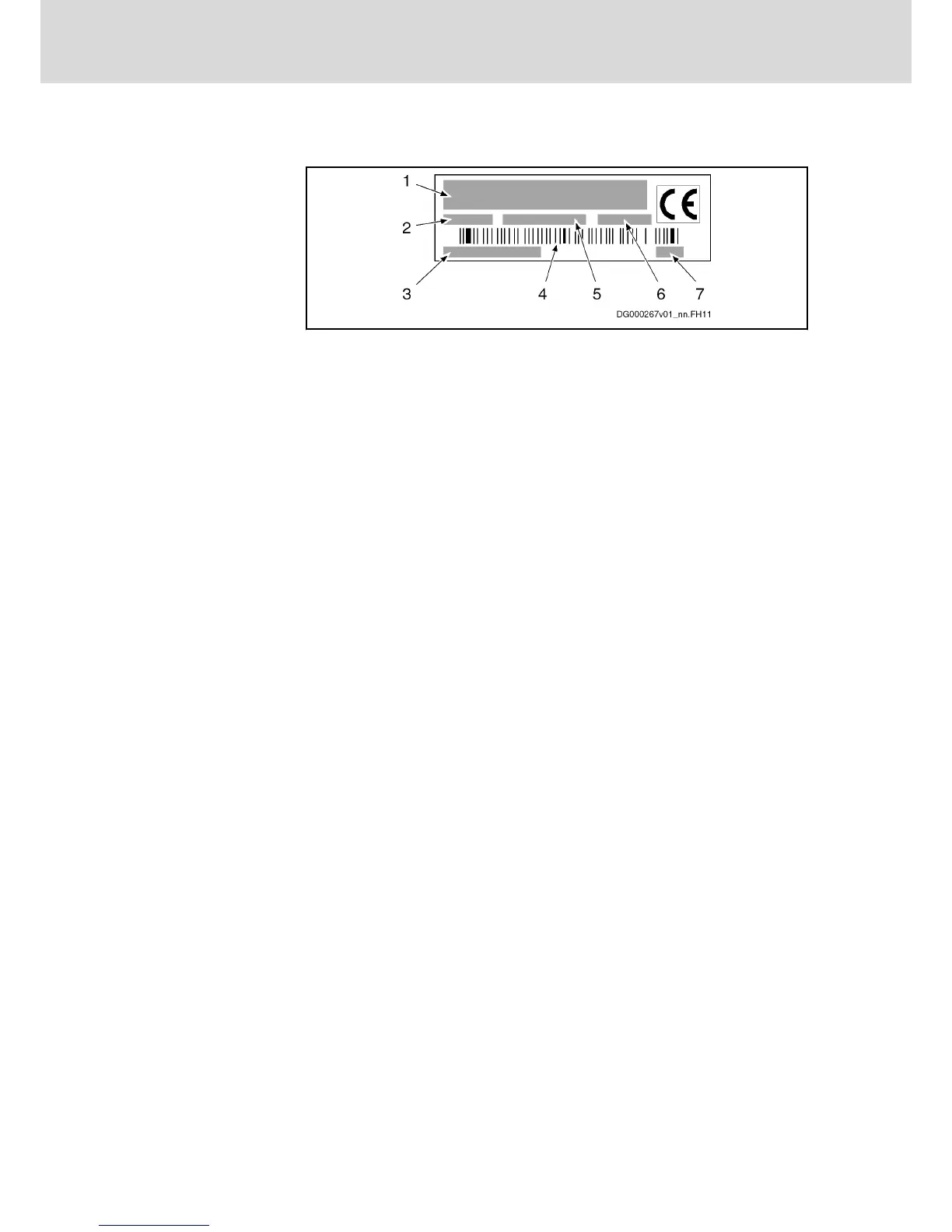

Type Plate (Power Sections, Sup‐
ply Units)
1 Device type
2 Part number
3 Serial number
4 Bar code
5 Country of manufacture
6 Production week; e.g. 08W23 meaning year 2008, week 23
7 Hardware index
Fig.2-2: Type Plate (Power Sections, Supply Units)
2.3 Scope of Supply
The scope of supply includes:
● 1 × touch guard
● 1 × connector X3 (only for design W0070)
● 1 × connector X5 (only for design W0070)
● 1 × connector X6
● 1 × connector X9 (for order codes ‑xxBx)
● 1 × Instruction Manual (in the English language)
Bosch Rexroth AG DOK-INDRV*-HCS03******-IT01-EN-P
Rexroth IndraDrive Drive Controllers Power Sections HCS03
