7.2 Information on Accessory HAS02
The supplied product insert shows how the parts of the acces‐
sory are arranged.

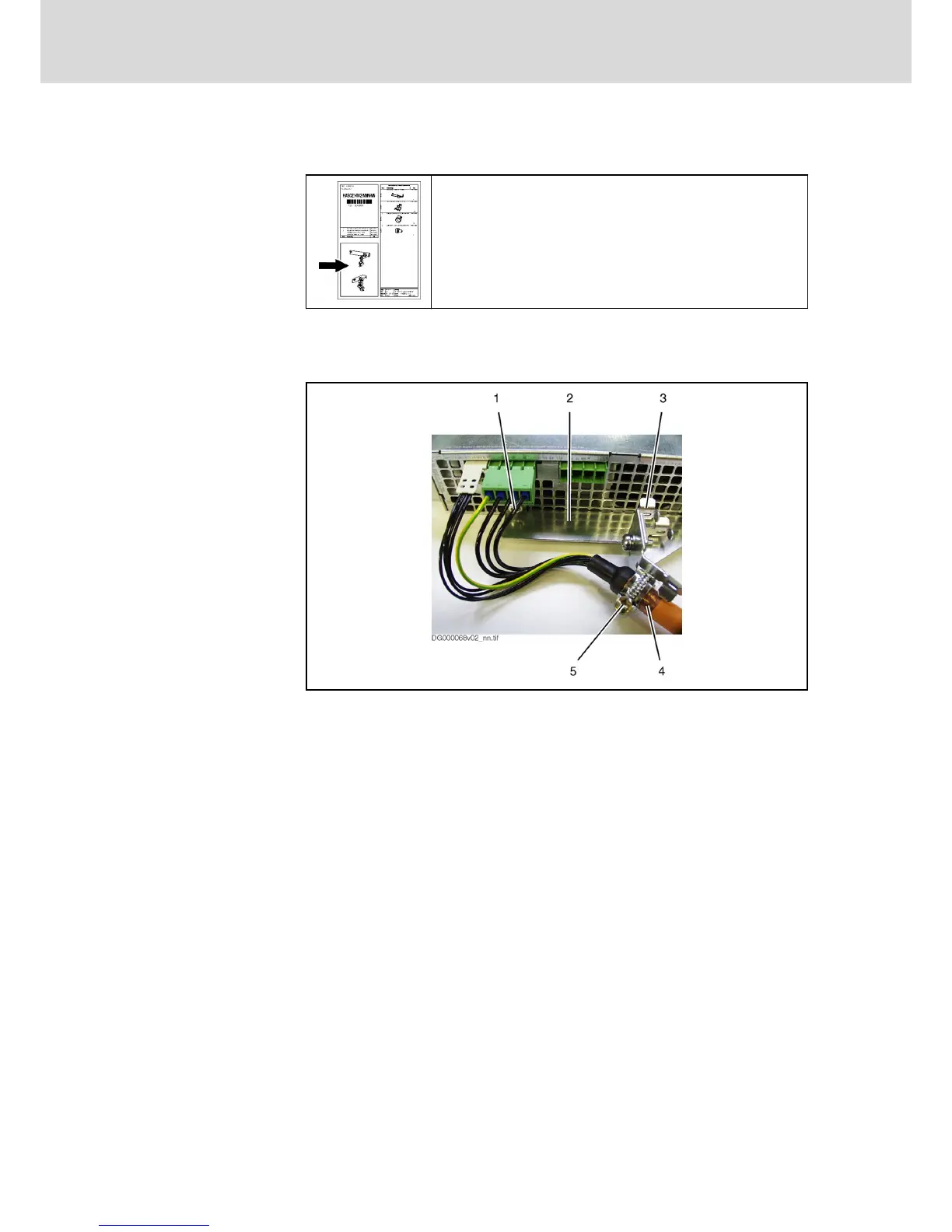

Fig.7-2: Product Insert
Mounting Example Accessory HAS02.1-002
1 Screw in thread at bottom of device
2 Fixing device
3 Shielding plate
4 Shield of motor cable
5 Clip
Fig.7-3: Strain Relief and Shield Connection of Motor Cable
How to mount the accessory
1. Unscrew bottom mounting screw of device.
2. Put fixing device to bottom of device and screw down mounting screw of
device again.
3. Screw supplied screw in thread at bottom of device.
4. Screw shielding plate to fixing device according to desired cable routing
of motor cable. (The figure illustrates cable routing with 45°.)
5. According to diameter of motor cable, fix motor cable at corresponding
point of shielding plate with a clip. Make sure that shield of motor cable
has good contact with shielding plate.
The mounting of the accessory is similar for all devices. Exception: With
HAS02.1-010 (at HMS02.1N‑W0028 / 54), the fixing device is screwed to the
equipment grounding conductor connections of the device.
Bosch Rexroth AG DOK-INDRV*-HCS03******-IT01-EN-P
Rexroth IndraDrive Drive Controllers Power Sections HCS03
60/67
Accessories
