5 Instructions for Use
5.1 Overcurrent Protection
Protect the components against overcurrent:
● Branch circuit protection has to be provided externally
● Dimension the branch circuit protection according to the data "Branch
circuit protection fuse (UL)" (see Ratings and Dimensions)
5.2 Connection Points

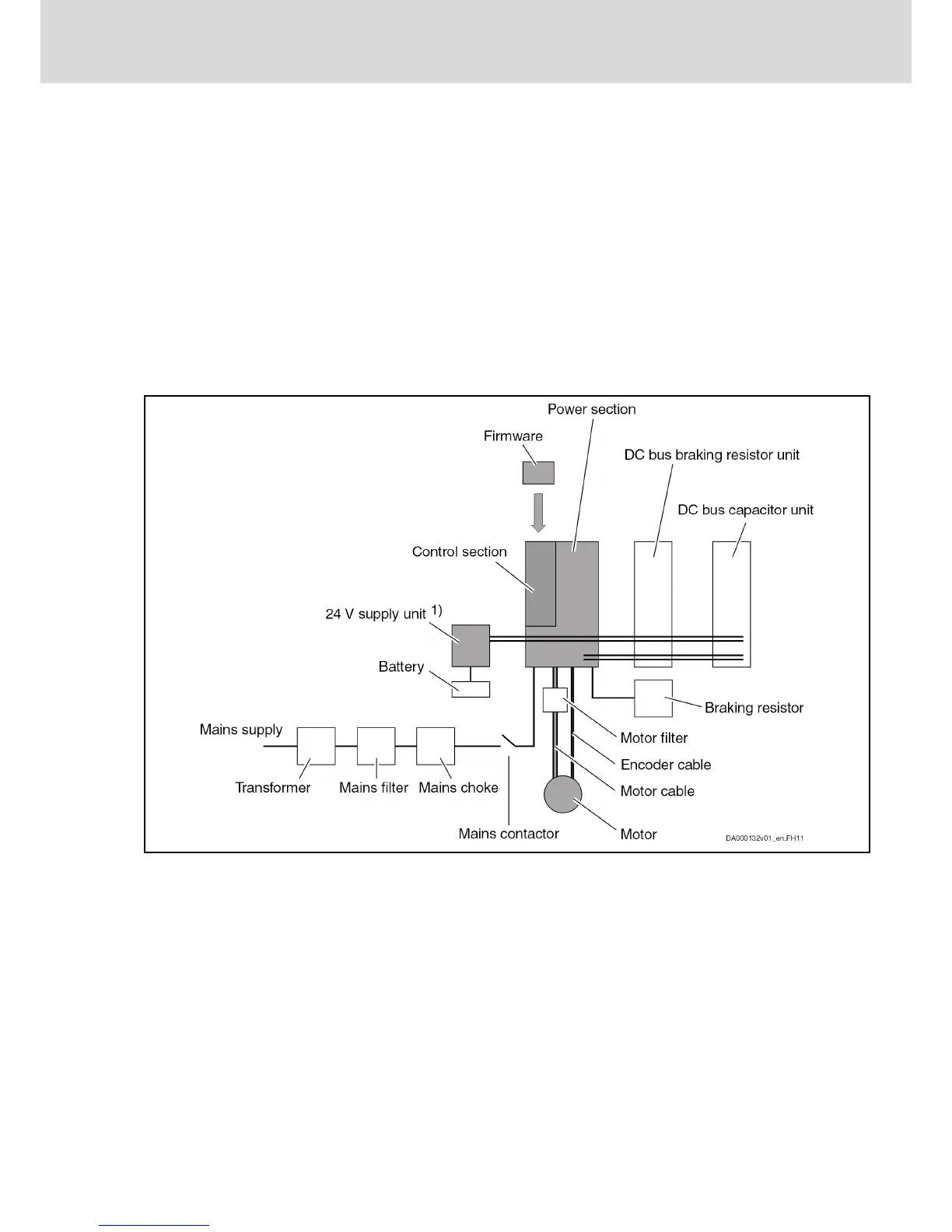

5.2.1 Wiring Diagram
Power section = HCS03
The components marked with gray background color are absolutely
necessary.
1) 24V power supply unit can be omitted when using devices with inte‐
grated 24V power supply (HCS02.1E- or HCS03.1E-...-NNNV with
control section CSB01.1N-FU)
Fig.5-1: Drive System Rexroth IndraDrive C
DOK-INDRV*-HCS03******-IT01-EN-P
Rexroth IndraDrive Drive Controllers Power Sections HCS03
Bosch Rexroth AG 29/67
Instructions for Use
