TRAY HEATER (OPTIONAL LCT)
A265/A267 3-48 SM
3.19 TRAY HEATER (OPTIONAL LCT)
!
CAUTION
Unplug the machine power cord before starting the following procedure.

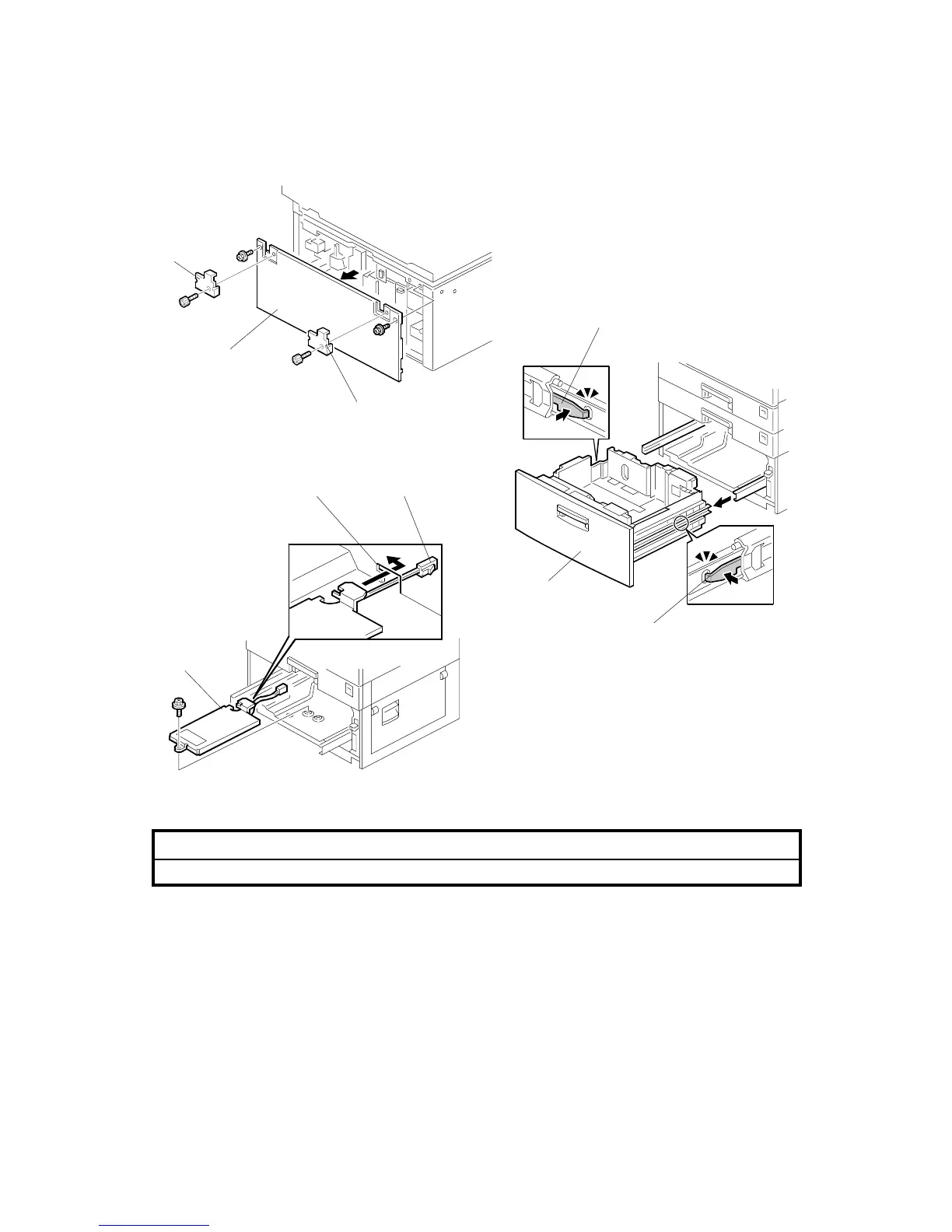

1. Remove two joint brackets [A] (1 screw each).
2. Remove the rear cover for the LCT [B] (2 screws).
3. Slide out the paper tray [C].
4. Push the stopper [D] on both slide rails and remove the paper tray.
5. Pass the connector [E] through the opening [F].
6. Install the tray heater [G] (1 screw).
A265I506.WMF
A862R101.WMF
A265I507.WMF
[A]
[B]
[A]
[C]
[D]
[D]
[E][F]
[G]
