Ricoh Aficio 220 Service Manual

PAPER FEED UNIT
A265/A267 10-16 SM
3.8 PAPER FEED UNIT
1. Remove the paper feed clutch and relay clutch (see Paper Feed Clutch and
Relay Clutch Replacement).
2. Remove pulleys A [A], B [B], and C [C].
3. Remove the paper feed harness from the main board.
4. Open the vertical transport guide plate [D].
5. Remove the paper feed unit [E] (2 screws).

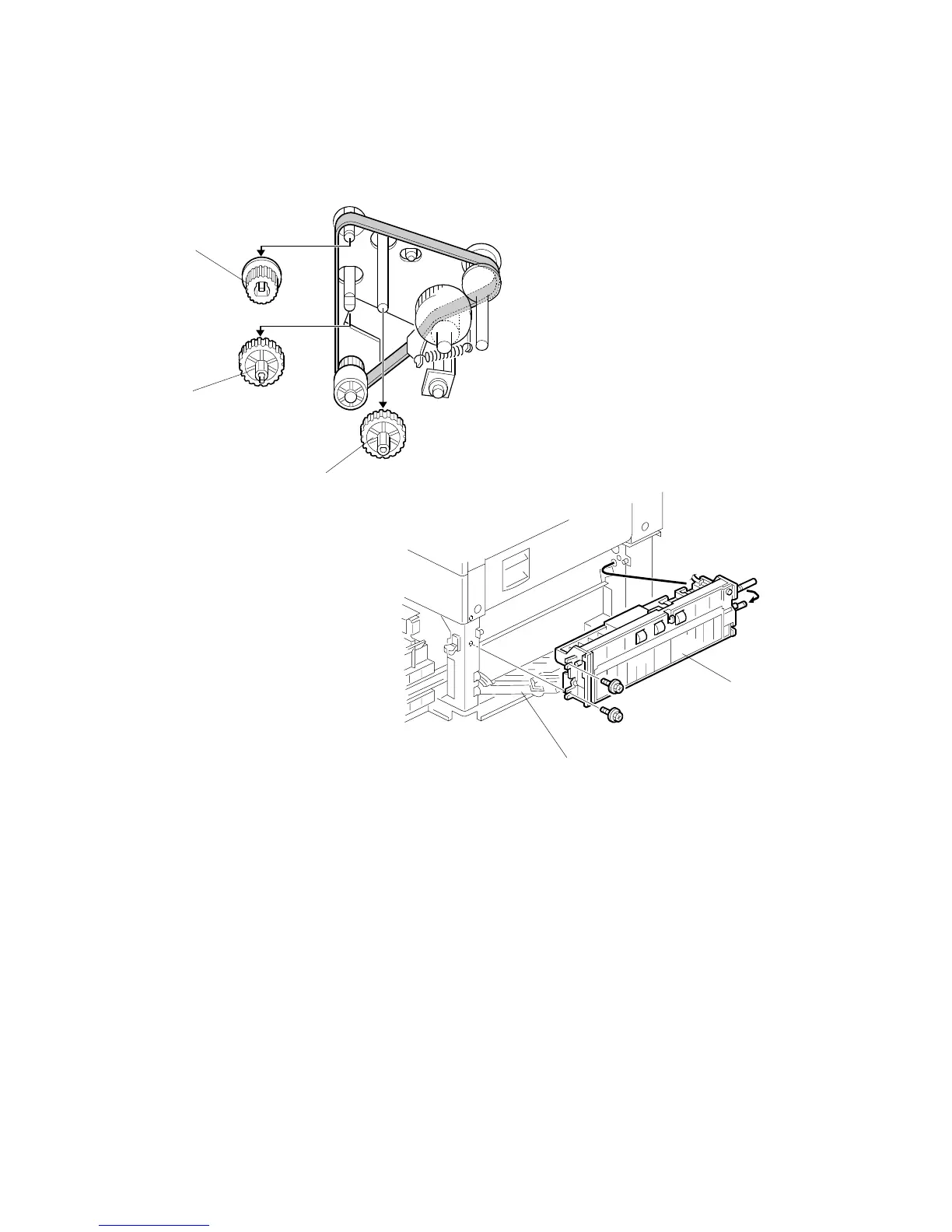

A862R109.WMF
A862R110.WMF
[A]
[B]
[C]
[E]
[D]
