ORIGINAL SET/ORIGINAL REVERSE SENSOR
A265/A267 8-26 SM
3.7 ORIGINAL SET/ORIGINAL REVERSE SENSOR

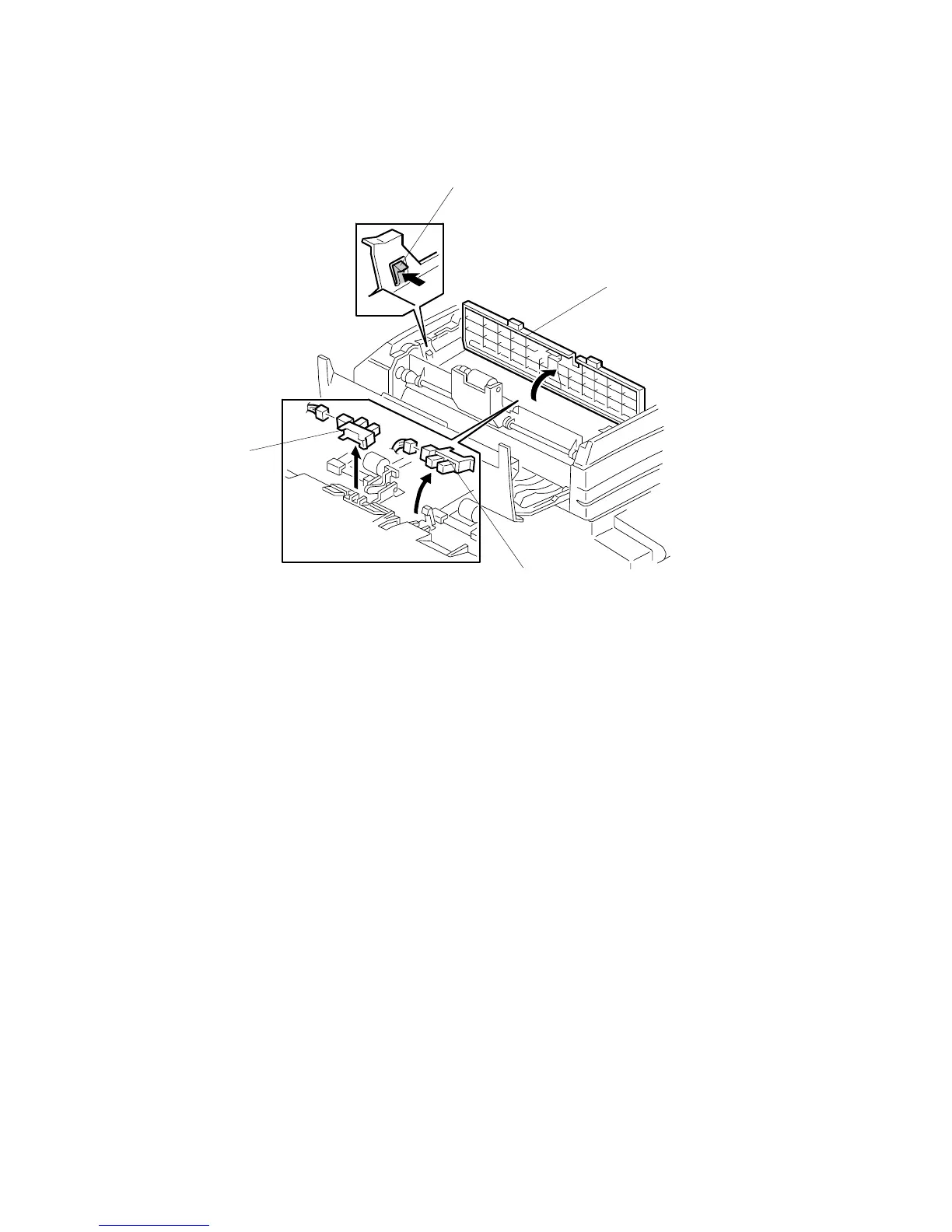

1. Open the left cover.
2. While pushing the left and right pawls [A], open the original feed guide plate [B].
3. Remove the original set sensor [C]
4. Remove the original reverse sensor [D].
A858R201.WMF
[B]
[D]
[A]
[C]
