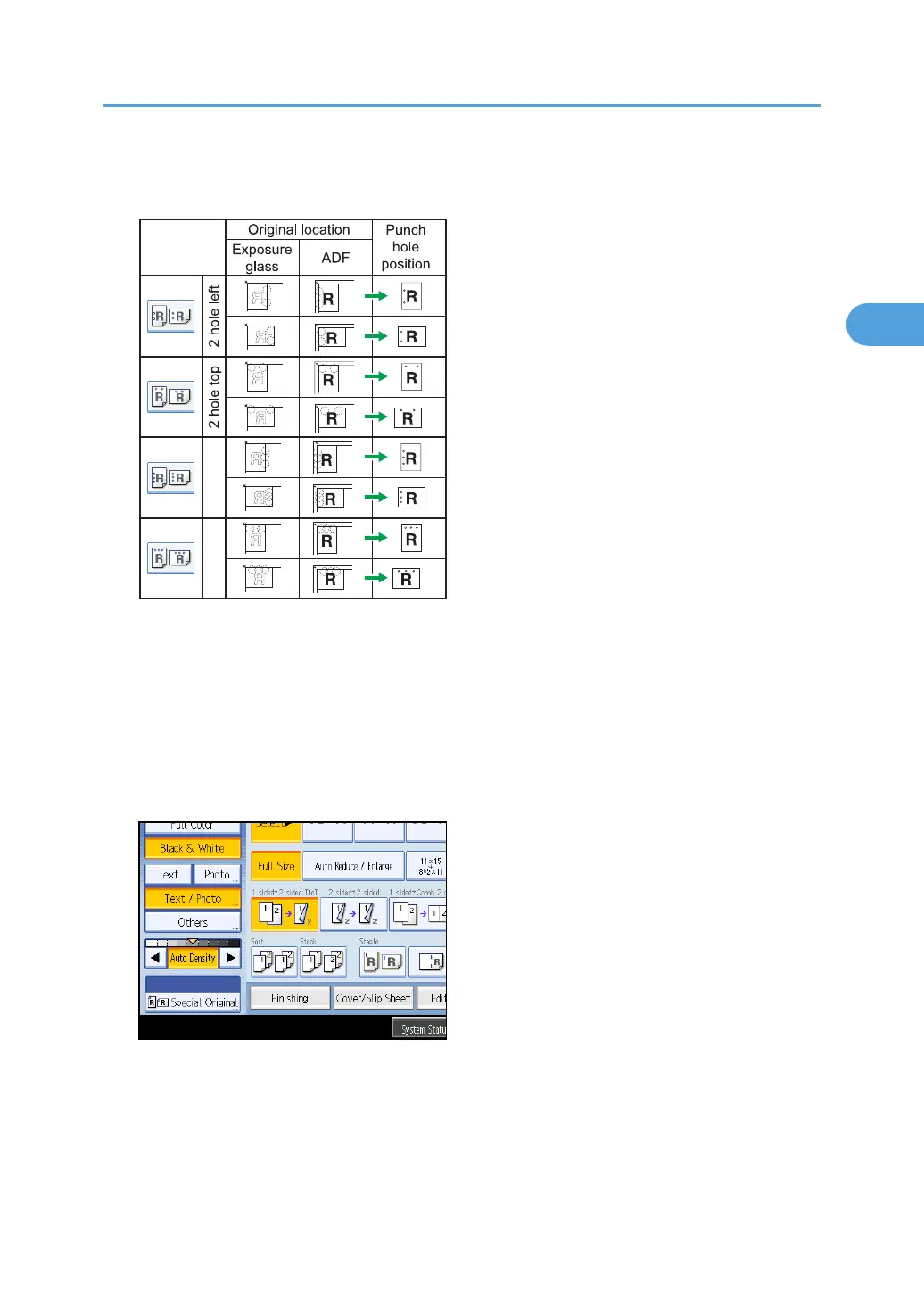

The relationship between the orientation in which you place the original and the punch hole positions
is as follows:
BZK073
*2 *3
*2
*3
*2
*1
*2 *3
3 hole top 3 hole left
*3
*1
The above table shows punch hole positioning. Punched sheets might not be delivered in the orientation
shown in this table.
*2
If you want to punch at this position, select unreadable orientation in Original Orientation and then select
2 Holes Top/3 Holes Top.
*3
You cannot punch at this position when copying onto the following paper sizes: A3, B4 JIS, 11 × 17,
8
1
/
2
× 14, 8
1
/
2
× 13, 8
1
/
4
× 13, 8 × 13
1. Press [Finishing].
2. Select one of the punch hole positions.
When Booklet Finisher SR3000 is attached (Type 1 and 2):
Finishing
91
