SH-P1 Training
67
Slide 67

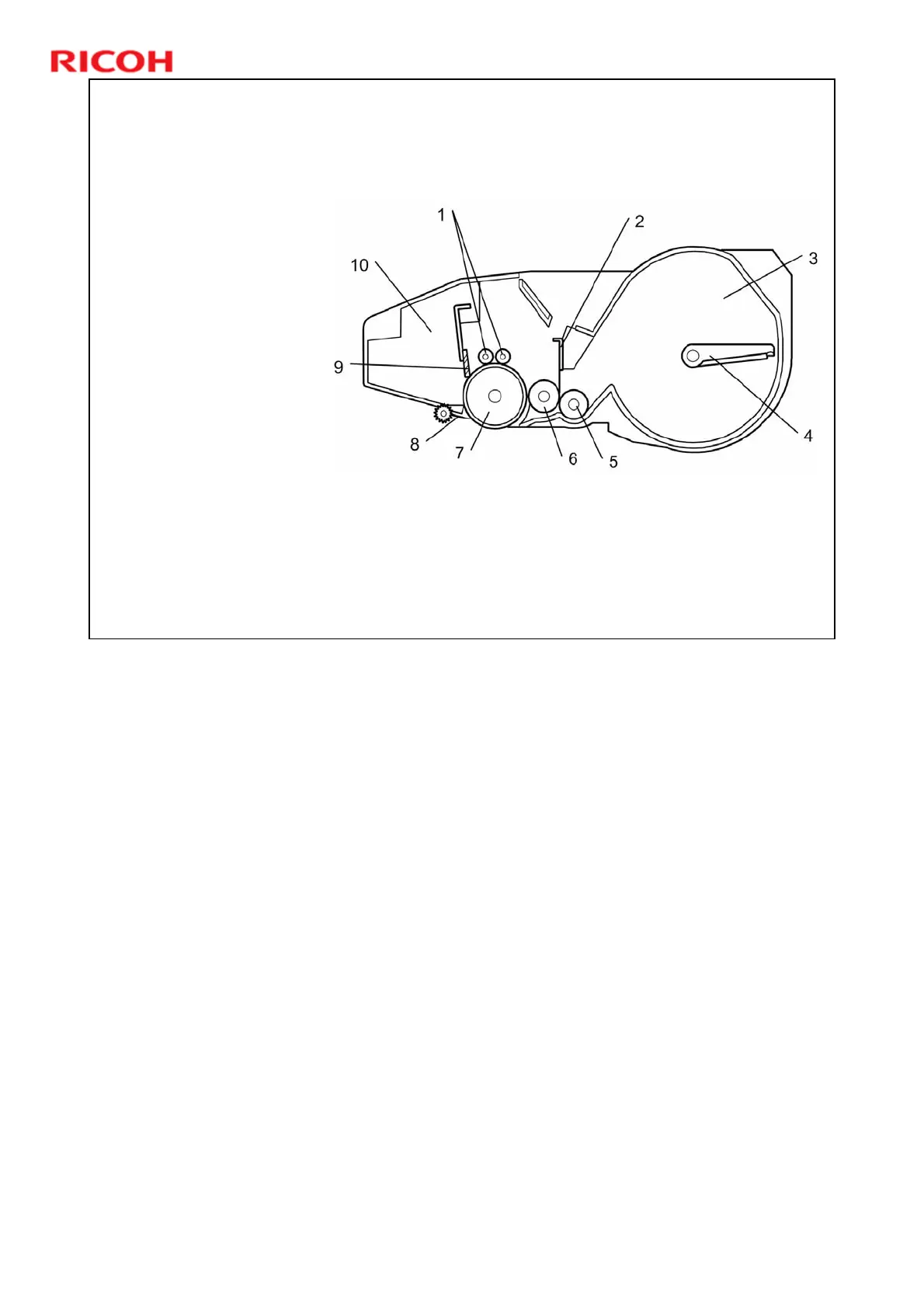

AIO Components
1. Charge rollers
2. Metering blade
3. Toner tank
4. Agitator
5. Toner supply roller
6. Development roller
7. Drum
8. Separation pawls
9. Cleaning blade
10. Waste toner tank
The AIO (All In One) cartridge combines toner, toner supply
mechanism, development mechanism, photoconductive drum,
charge mechanism, development mechanism, and drum
cleaning mechanism in a single unit.
The limiting factor for AIOs is toner.
¾ The initial AIO that comes with the machine makes about 6k copies/prints.
¾ The supply AIO makes about 25k copies/prints.
