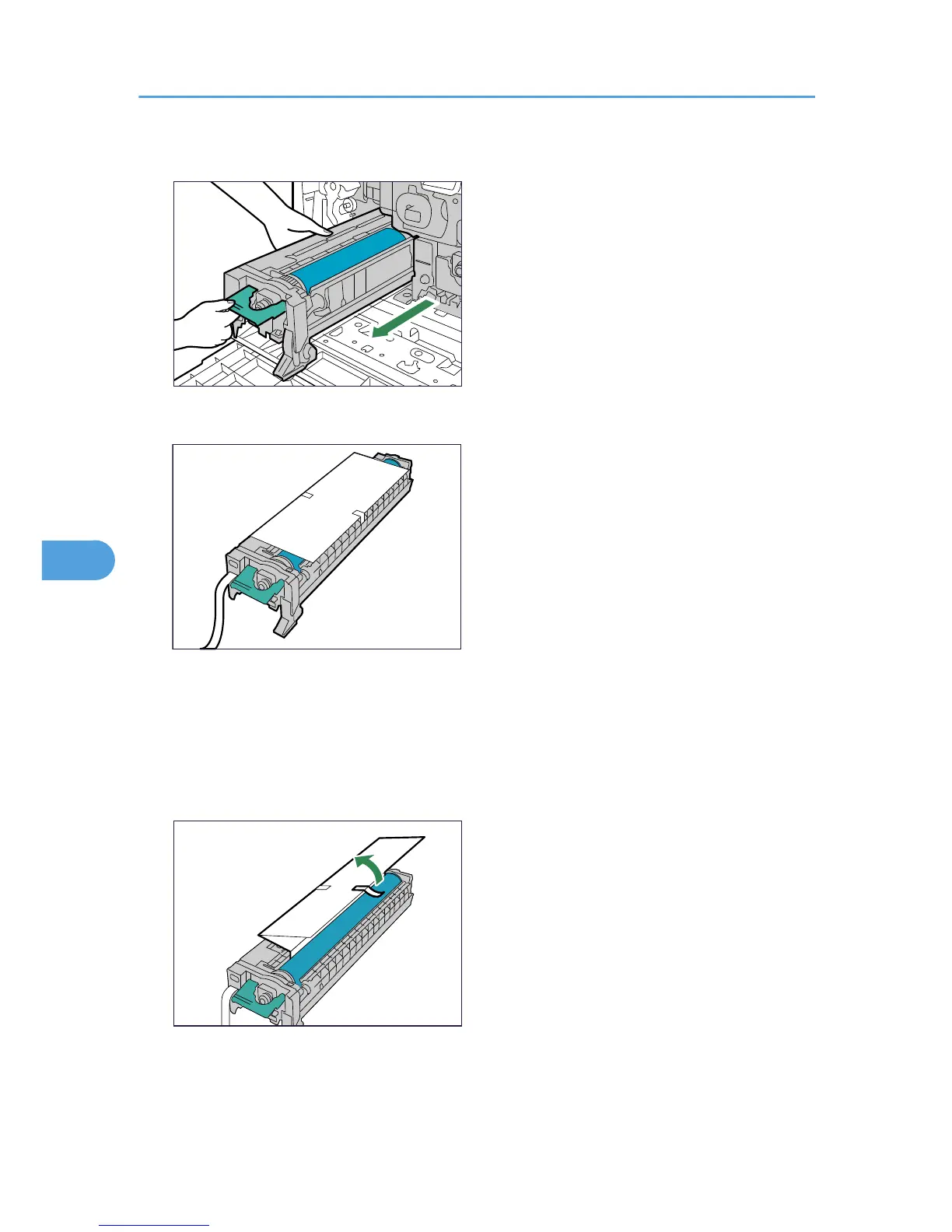

7. Holding the green grip on the left and the handle on the front, pull out the drum unit.
BMV070S
8. Take the new yellow drum unit out of the box.
BMV225S
For black, install one black drum unit; for color, install all three together.
Exposure to light reduces black drum unit/color drum units performance. Replace the unit as quickly
as possible.
9. Remove the protecting cover. Do not remove the tape hanging from the front yet.
Take care that nothing comes into contact with the top surface of the drum unit.
BMV227S
When holding the drum unit, hold the green grip on the left and the handle on the front together. Do
not move the drum unit by only holding the grip. Doing so may damage the grip.
6. Replacing Consumables
146
6
