Ricoh Aficio SP C820DN User Manual

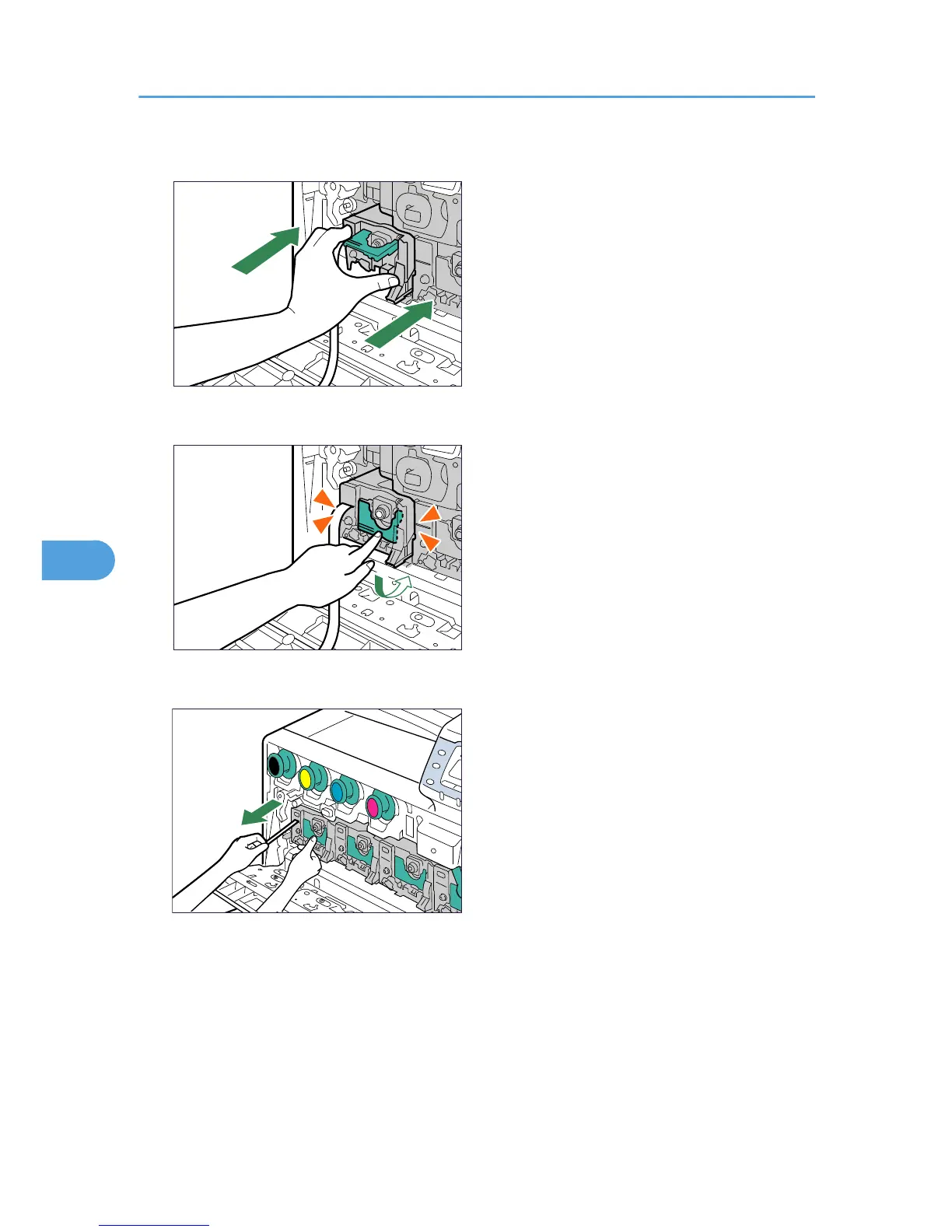

13. Pushing the front of the drum unit, fully insert it into the printer.
BMV073S
14. Lower the handle located on the front of the drum unit, and push it until it clicks into place.
BMV074S
15. Holding the drum unit firmly in place, pull out the tape.
BMV075S
• Remember to pull out the tape. Malfunctions occur if you attempt to print while the tape is still
attached.
• The removed tape is dirty. Be careful not to let it touch your hands or clothes.
16. When replacing a color drum unit, replace the other two color units together using the same
procedure, before closing the inner cover.
6. Replacing Consumables
148
6

Ricoh Aficio SP C820DN Specifications

General

Brand	Ricoh
Model	Aficio SP C820DN
Category	Printer
Language	English
