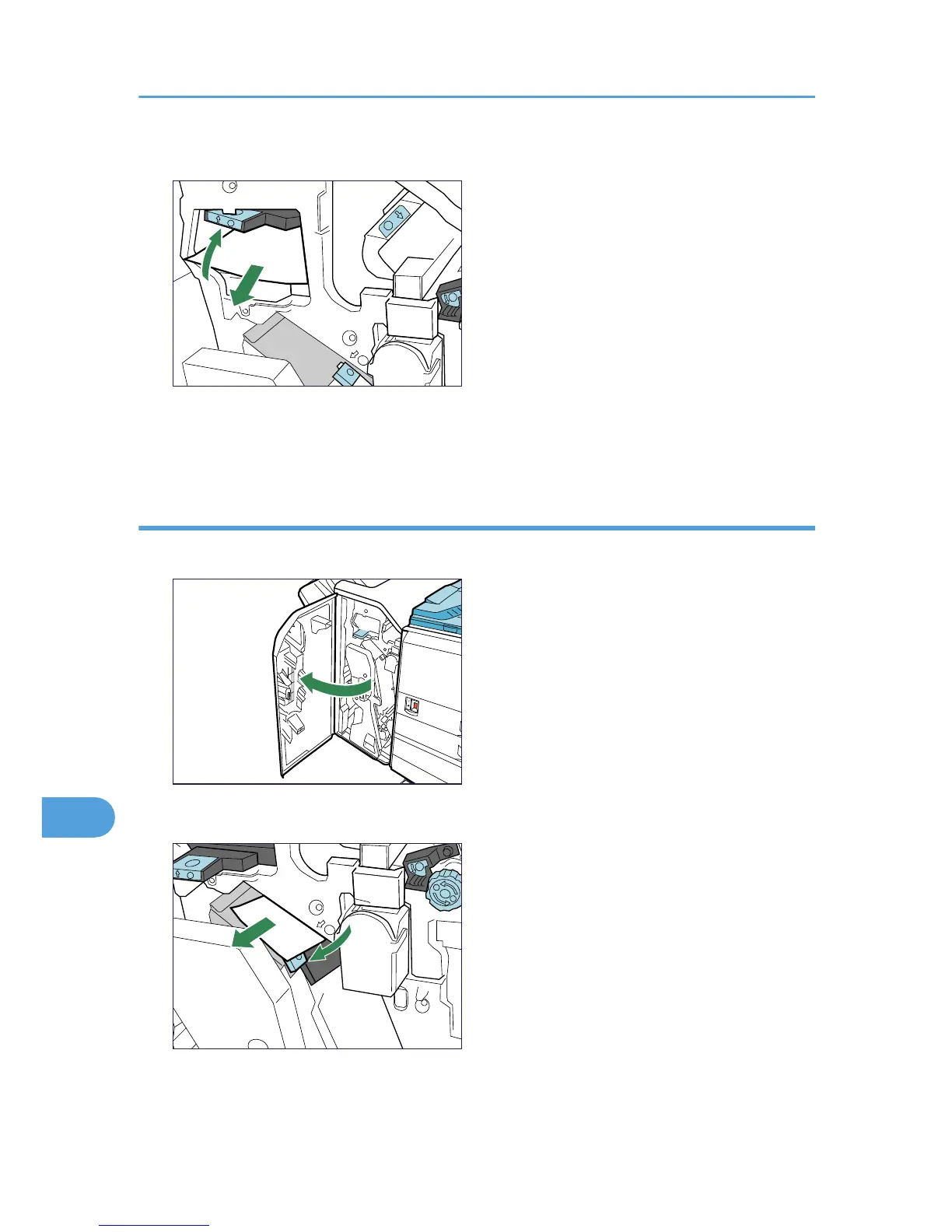

7. Raise lever R4 up and remove the paper.

BEK071S

8. Return levers R3 and R4 to their original positions.

9. Close the front cover of the finisher.

When R5, R6, R7, or R8 is displayed.

1. Open the front cover of the finisher.

BMV094S

2. Push lever R5 outward and remove the paper.

BEK072S

3. Return lever R5 to its original position.

10. Removing Misfed Paper

250
