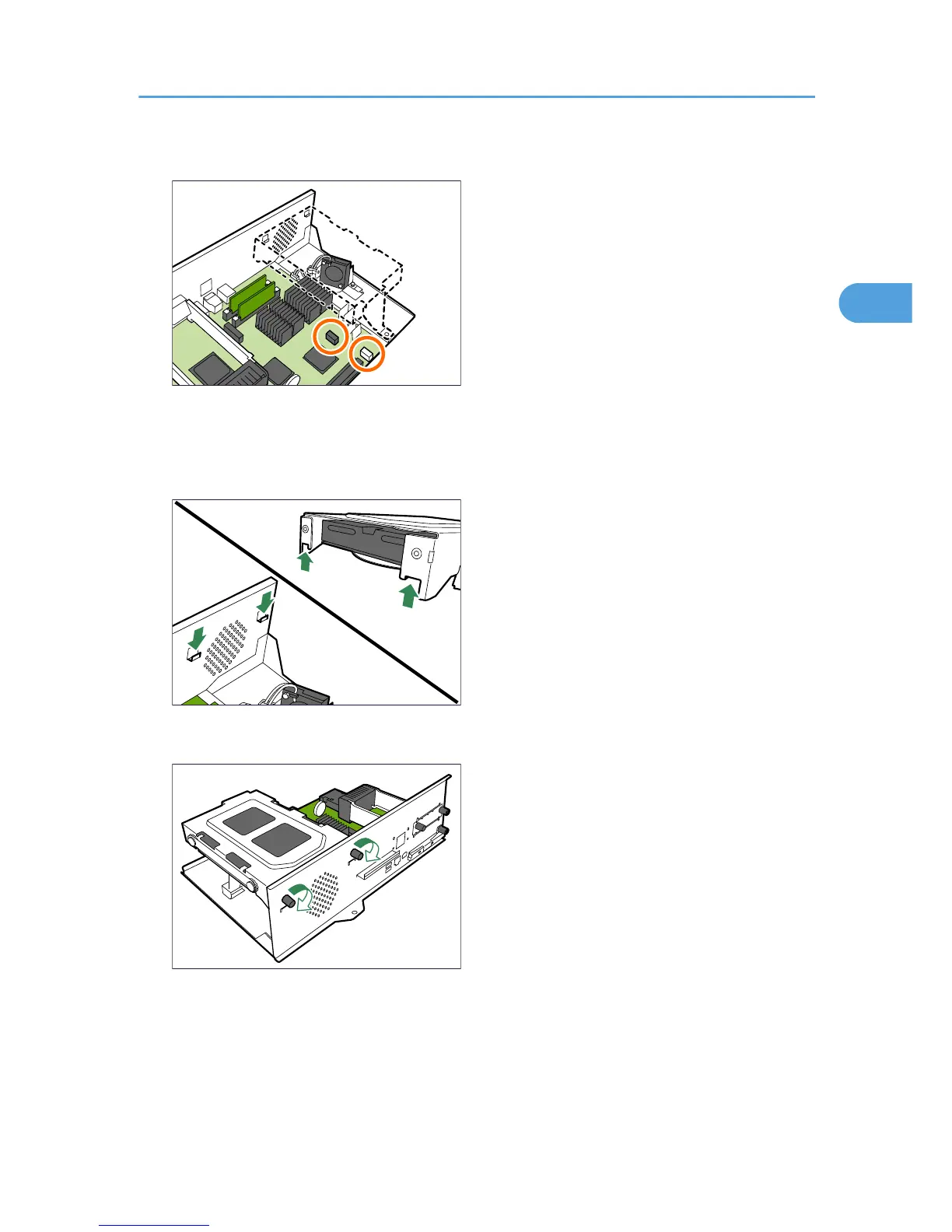

5. Install the hard disk in the indicated position.
BMV153S
Install the hard disk carefully if the SDRAM module is already installed. If the hard disk comes in
contact with the SDRAM module, the SDRAM module may become damaged.
6. Hook the mounting indents on the hard drive onto the tabs on the controller board panel.
BMV154S
7. Use two coin screws to fasten the hard disk to the controller board panel.
BMV155S
