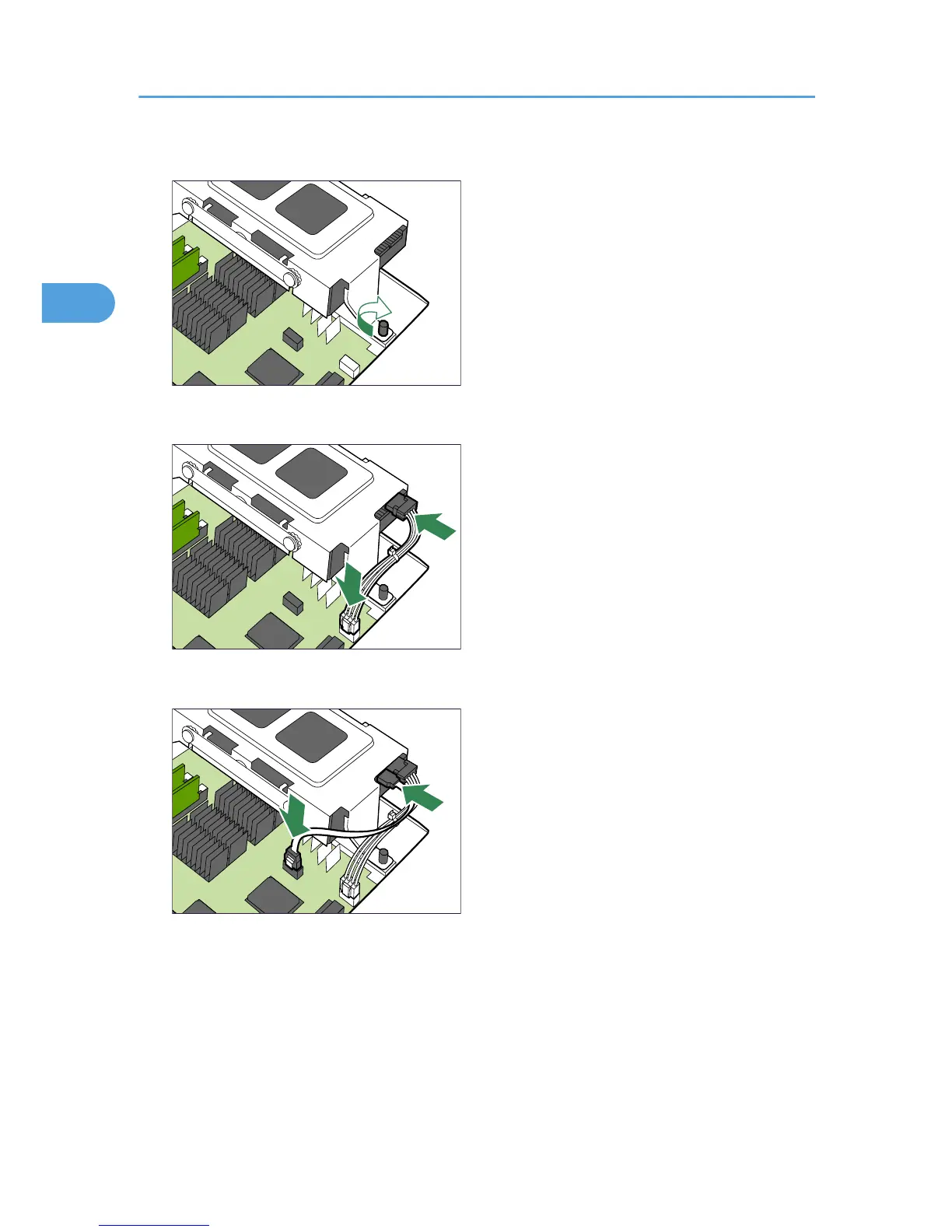

8. Fasten the hard disk to the circuit board with the remaining coin screw.

BMV156S

9. Connect the power cable to the hard disk and the controller board.

BMV157S

10. Connect the flat cable to the hard disk and the controller board.

BMV158S

11. If you are installing other options onto the controller board, proceed to install the next option

without reinserting the controller board.
