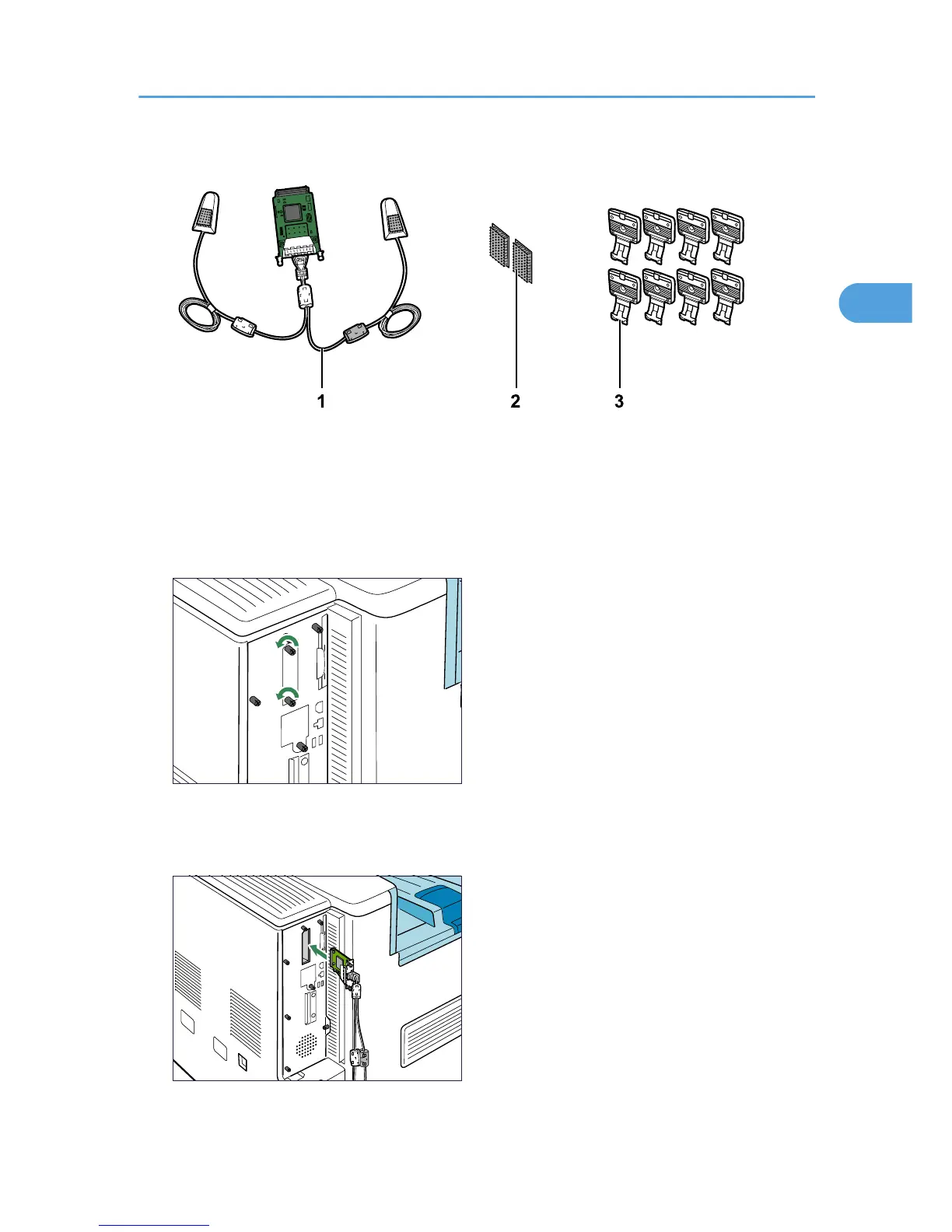

1. Check the contents of the package.

BEK175S

1. Wireless LAN Interface Board

2. Two Hook-and-loop Fasteners

3. Eight Hooks

2. Turn the printer off and unplug the power cord.

3. Loosen the two screws and remove the slot cover.

BMV165S

The removed cover will not be reused.

4. Fully insert the interface board.

BMV168S

Confirm that the interface board is firmly connected to the controller board.
