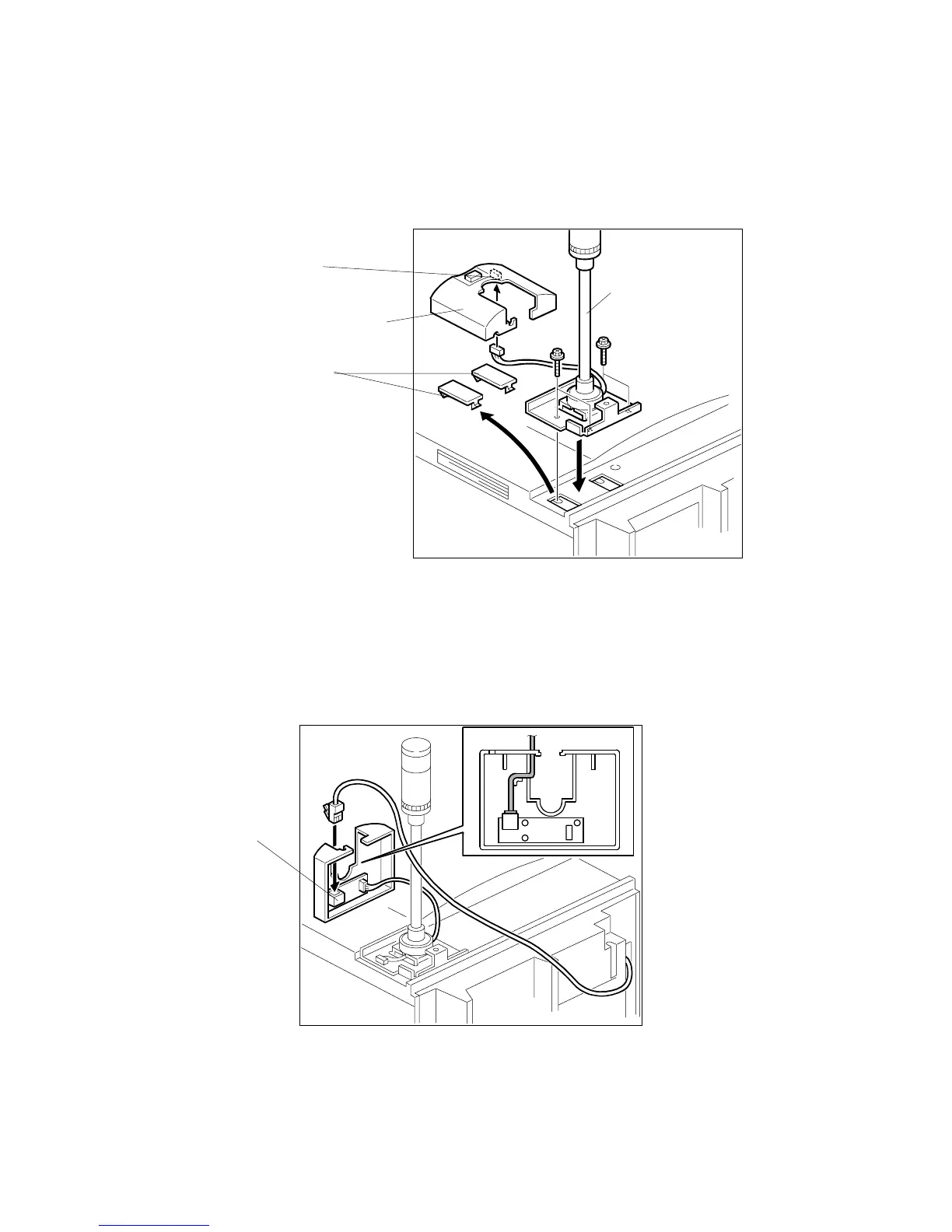

5. Remove the right cap.
6. Attach the LED Stand (4 screws).
7. Connect one end of the long harness to the LED Stand Front Cover (CN592).
8. Connect the other end of the long cable to CN591.
9. Lead the cable through the ribs on the LED Stand Front Cover (see photo).
[LED Stand Front Cover]
[Right Cap]
[LED Display]
[CN592]
[CN591]
