2. Getting Started
This chapter describes how to start using this machine.
Guide to Components
This section introduces the names and functions of the components.
• Do not obstruct the ventilation holes by placing objects near them or leaning things against them. If
the machine overheats, a fault might occur.

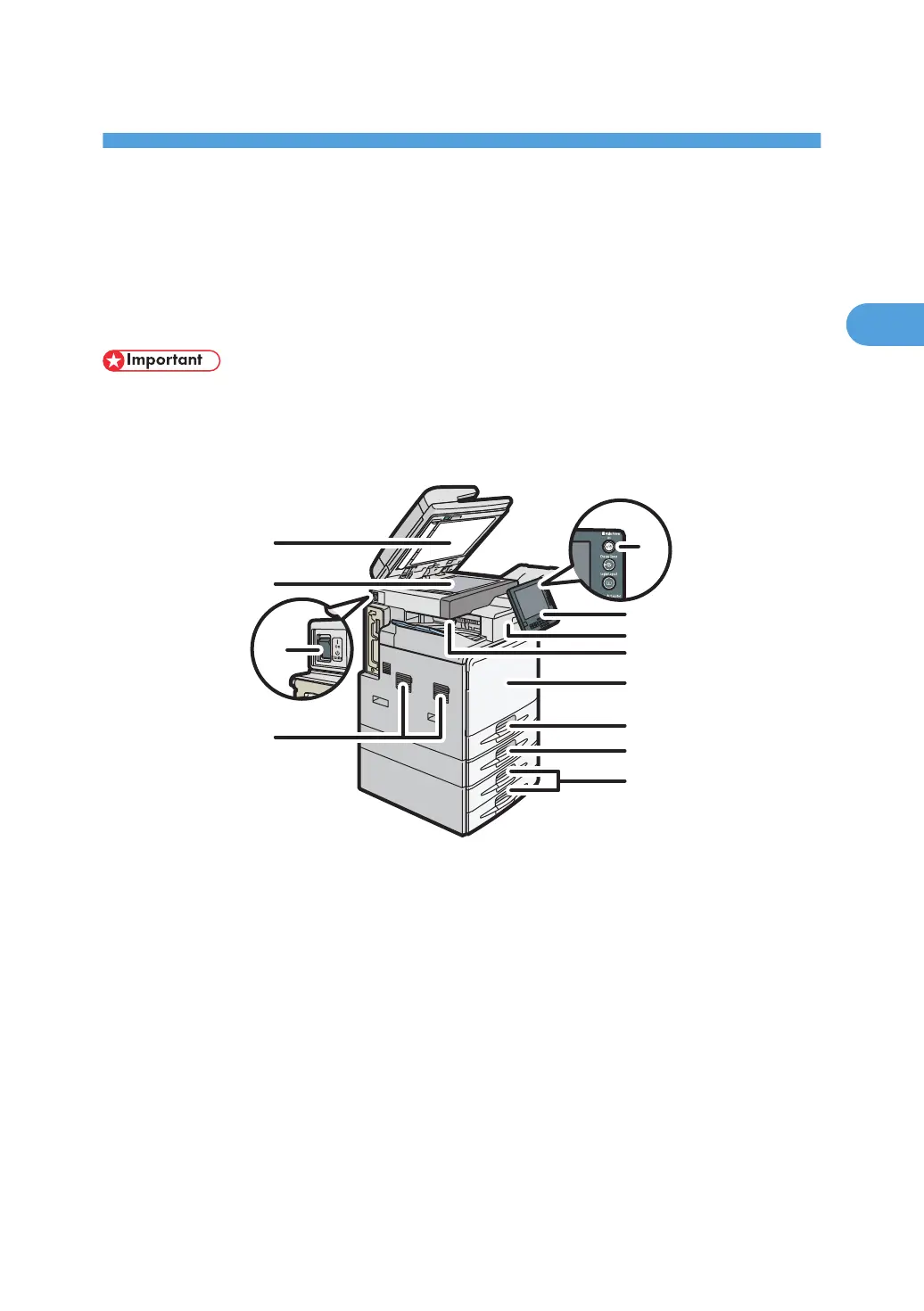

Front and left view
CCS065
1
2
3
5
6
9
10
11
12
8
7
4
1. ADF
Lower the ADF over originals placed on the exposure glass.
If you load a stack of originals in the ADF, the ADF will automatically feed the originals one by one. This ADF
can be used for two-sided originals.
2.
Exposure glass
Place originals face down here.
3. Main power switch
If the machine does not operate after turning on the operation switch, check if the main power switch is turned
on. If it is off, turn it on. See “Turning On/Off the Power”.
4. Ventilation holes
Prevent the machine from overheating.
