2.6.2 Installing the Rollers: Multi bypass Tray (Tray 6)

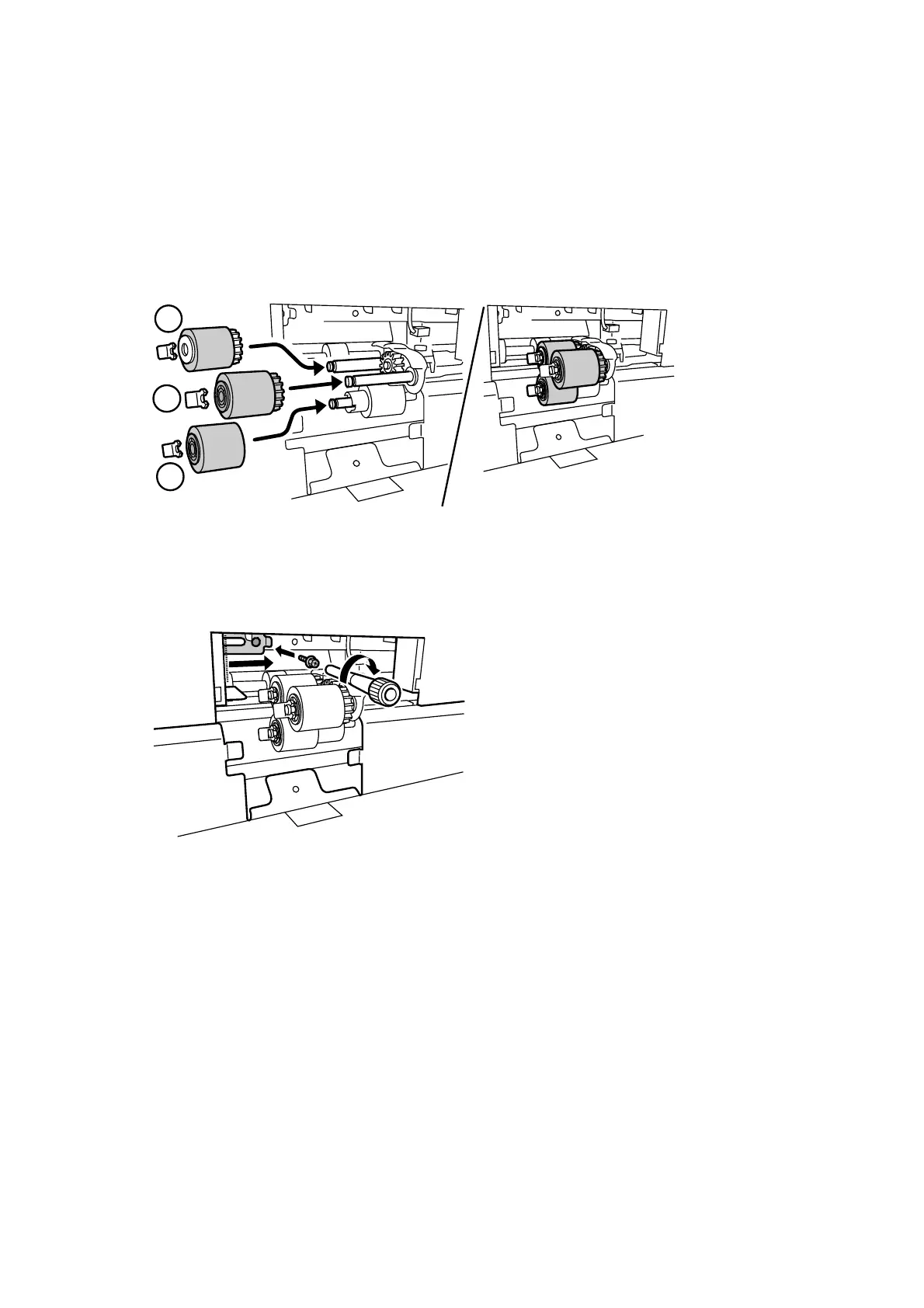

1. Attach the new paper feed roller in the following order:
(1) Separation snap ring and roller
(2) Feed roller snap ring and roller
(3) Pick-up roller snap ring and roller
3
2
1
CEZ174
Note: Avoid touching the surfaces of the new rollers with bare fingers.
2. Push the sensor positioning plate to the right, and then reattach the black
screw.
CEZ173
