48

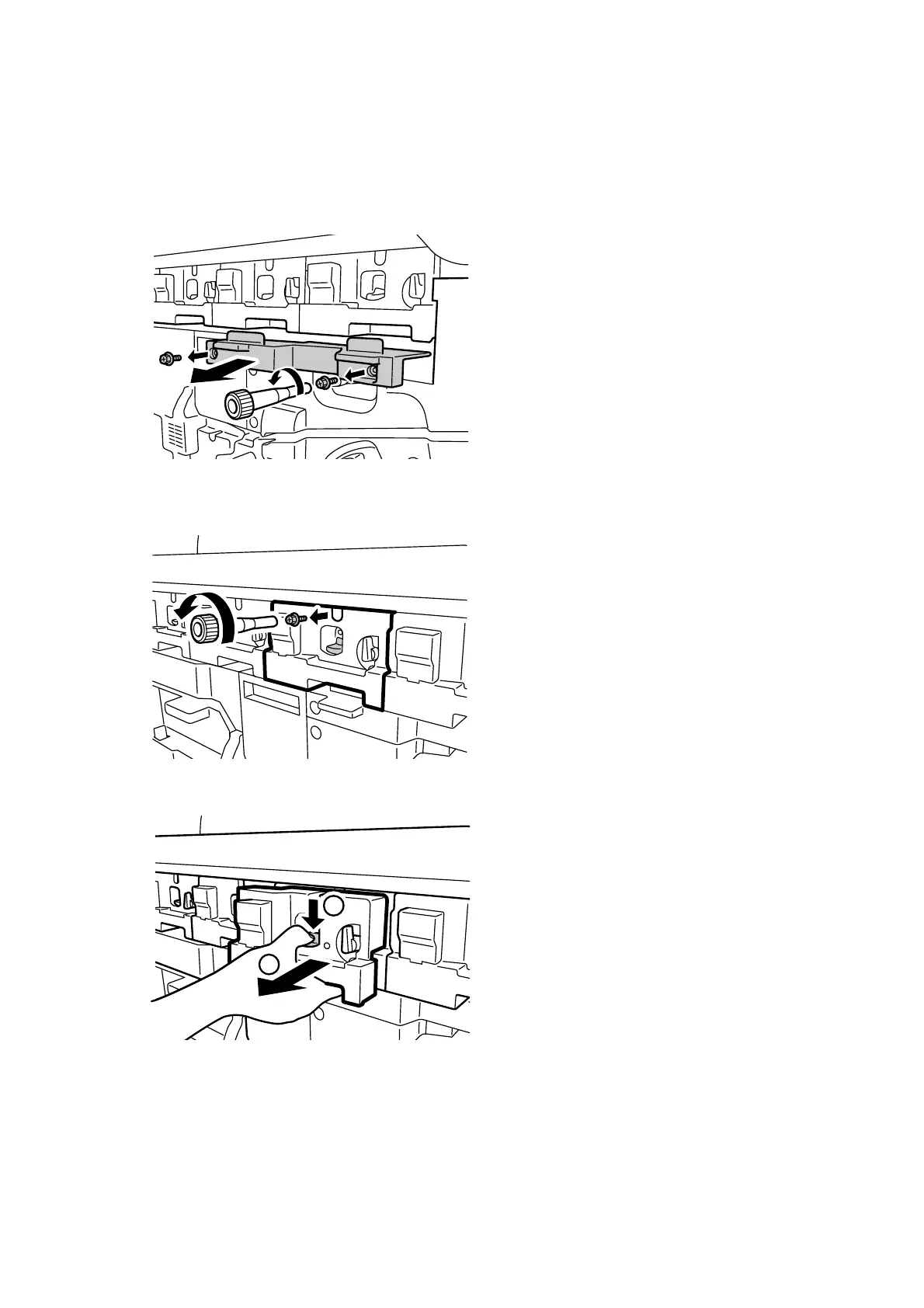

5. If you are replacing the units for yellow or magenta, proceed to Step 7. If you
are replacing the units for cyan or black, remove the two black screws on the
ITB release lever cover, and then remove the cover.
CEZ151
6. Remove the PCDU's lock screw.
CEZ109
7. Push down on the lock lever (1) and pull the PCDU out (2) until it stops.
1
2
CEZ110
