59

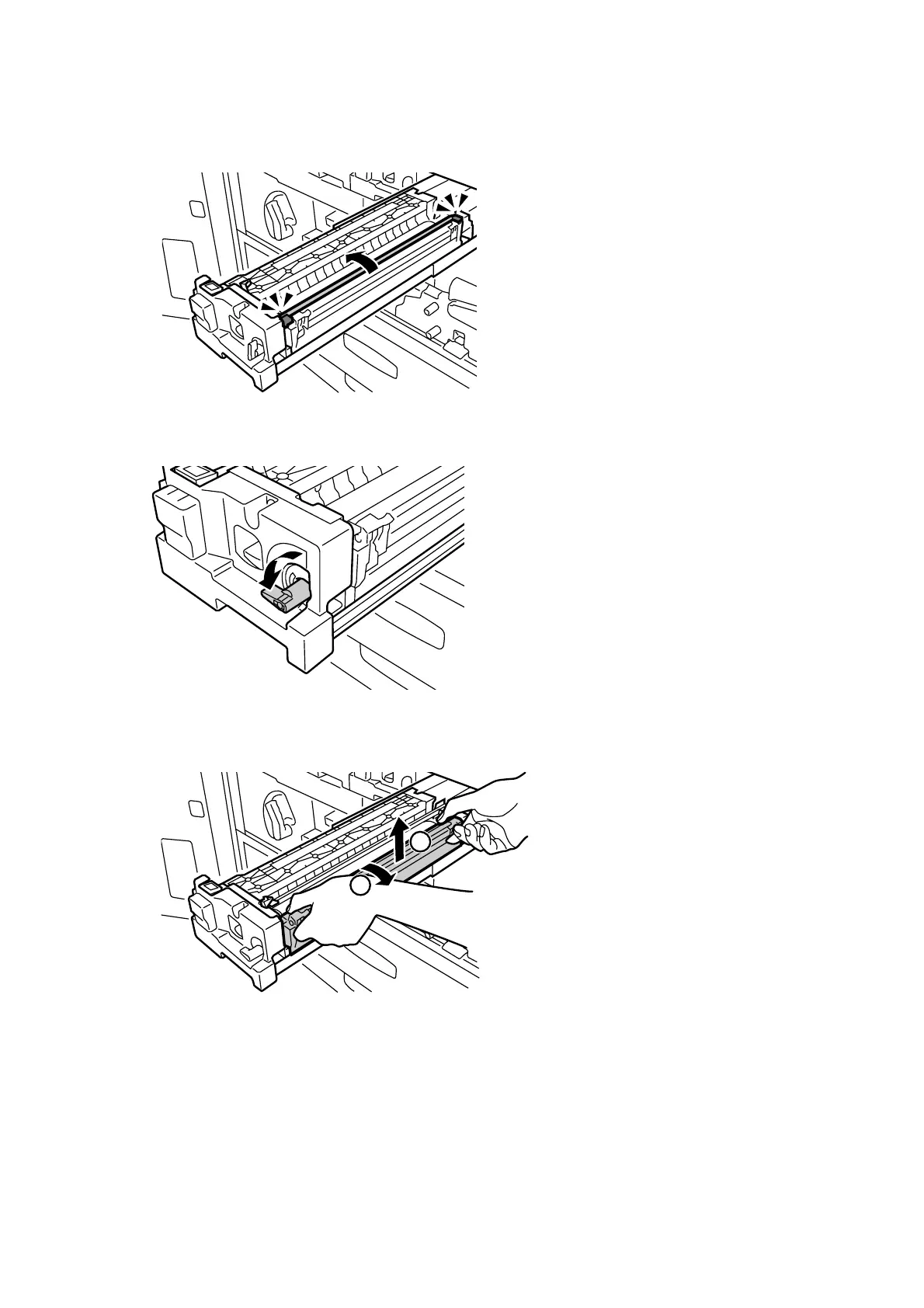

11. Pull up the drum handle.
CEZ130
12. Turn the lock lever counterclockwise to unlock the cleaning unit.
CEZ113
13. Holding the ends of the cleaning unit for PCU where the purple labels are,
rotate the unit slightly to the right and lift it out.
1
2
CEZ131
