60

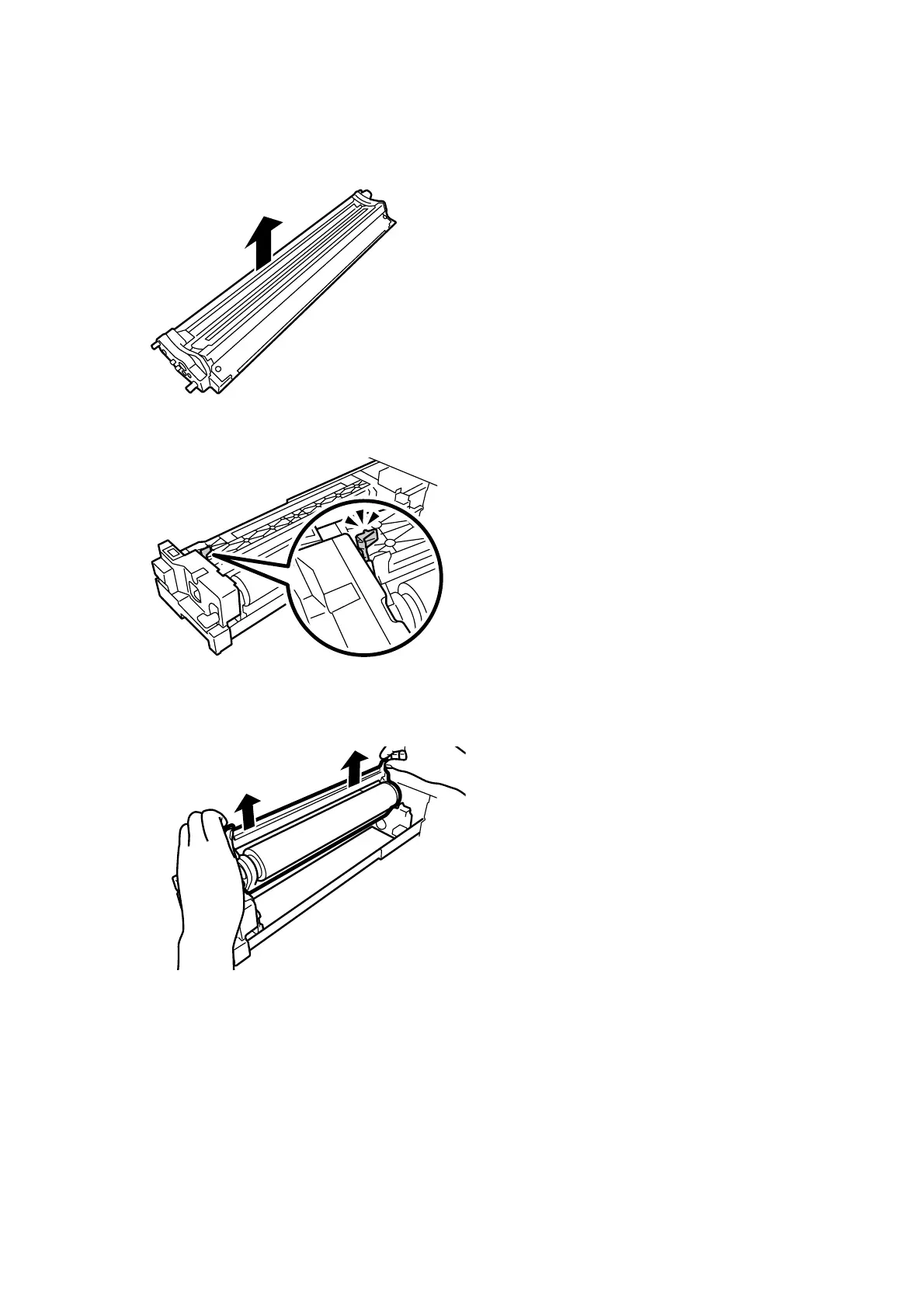

14. Place the cleaning unit for PCU down with its open end up to prevent toner
spillage.
CEZ154
15. Make sure that the lock lever is up.
CEZ155
16. Grasp both ends of the handle and lift the drum out.
CEZ136
