64

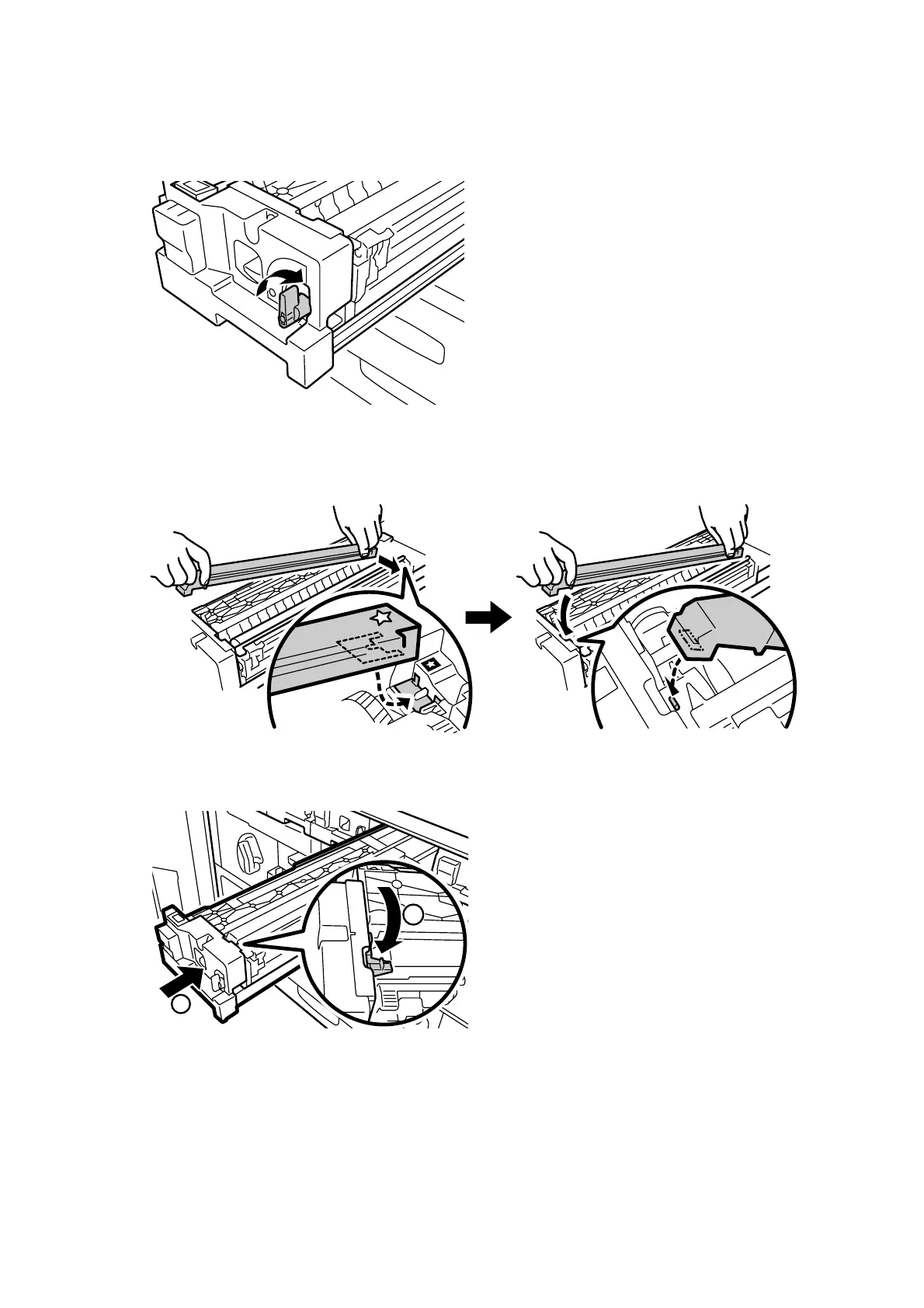

11. Pull up the lock lever to lock the cleaning unit for PCU.
CEZ114
12. Holding the ends of the charge roller unit where the purple labels are, connect
the end of the unit that will face the rear of the machine with the lug, and then
lower the unit so that the notch in the other end connects with the lug.
CEZ133
13. Pull down the charger roller unit lock lever to the locked position, and then
slowly push the PCDU into the machine.
2
1
CEZ134
To Next Page
