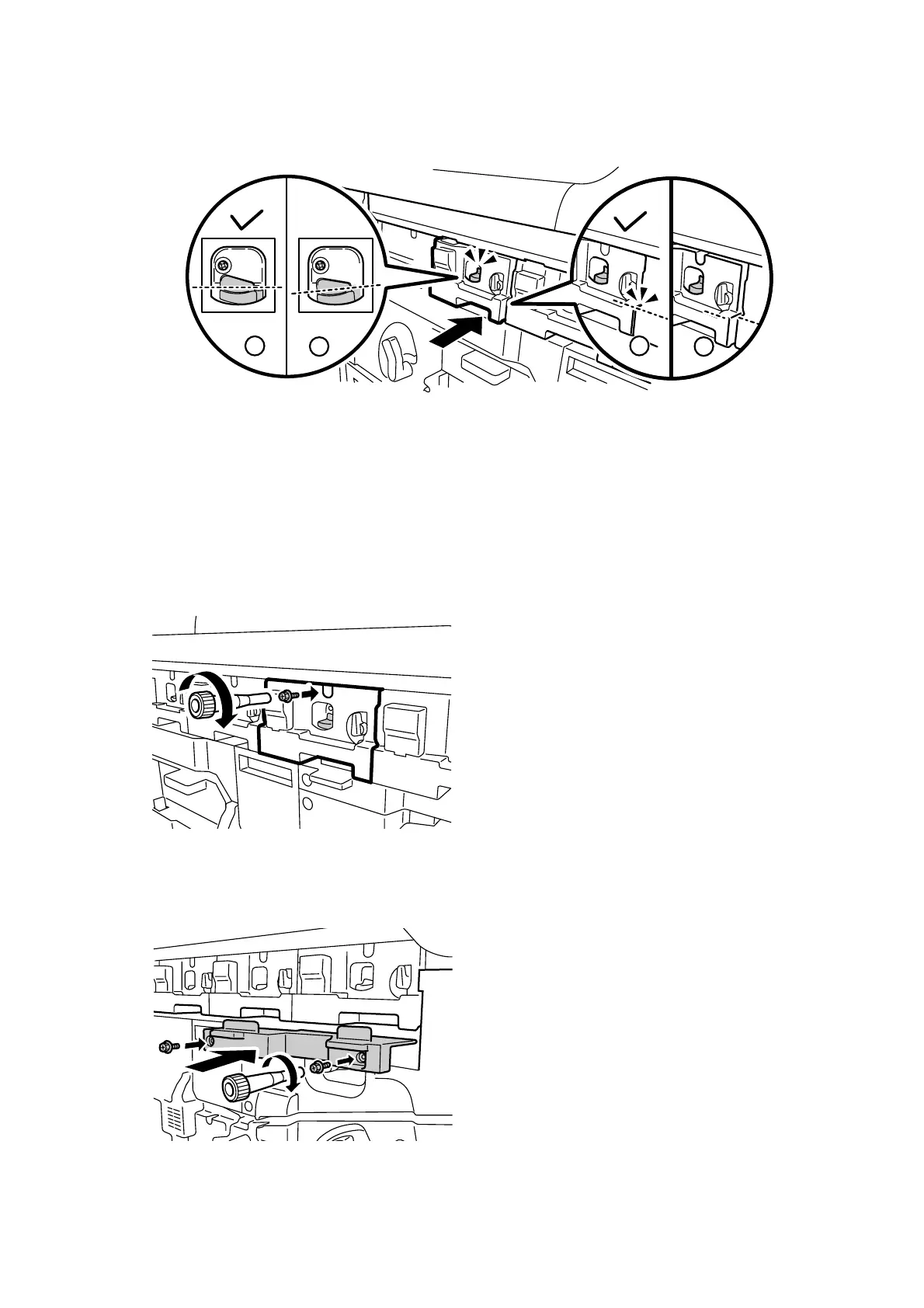

14. Push the PCDU in until the lock lever clicks and pops up.
1
2
1
2
CEZ152A
(1) Locked
(2) Unlocked
Important:
• Do not forcefully push in the PCDU. Doing so may cause damage or toner spillage.
• If the PCDU’s lock lever does not work, then the joint on the inner side of the
photoconductor may not be properly engaged. If this happens, pull the PCDU out more
than 30 mm (1.2 inches) and push it in again.
15. Reattach the black screw.
CEZ219
16. If you detached the ITB release lever cover, reattach it and then secure it with
the two black screws.
CEZ220
