66

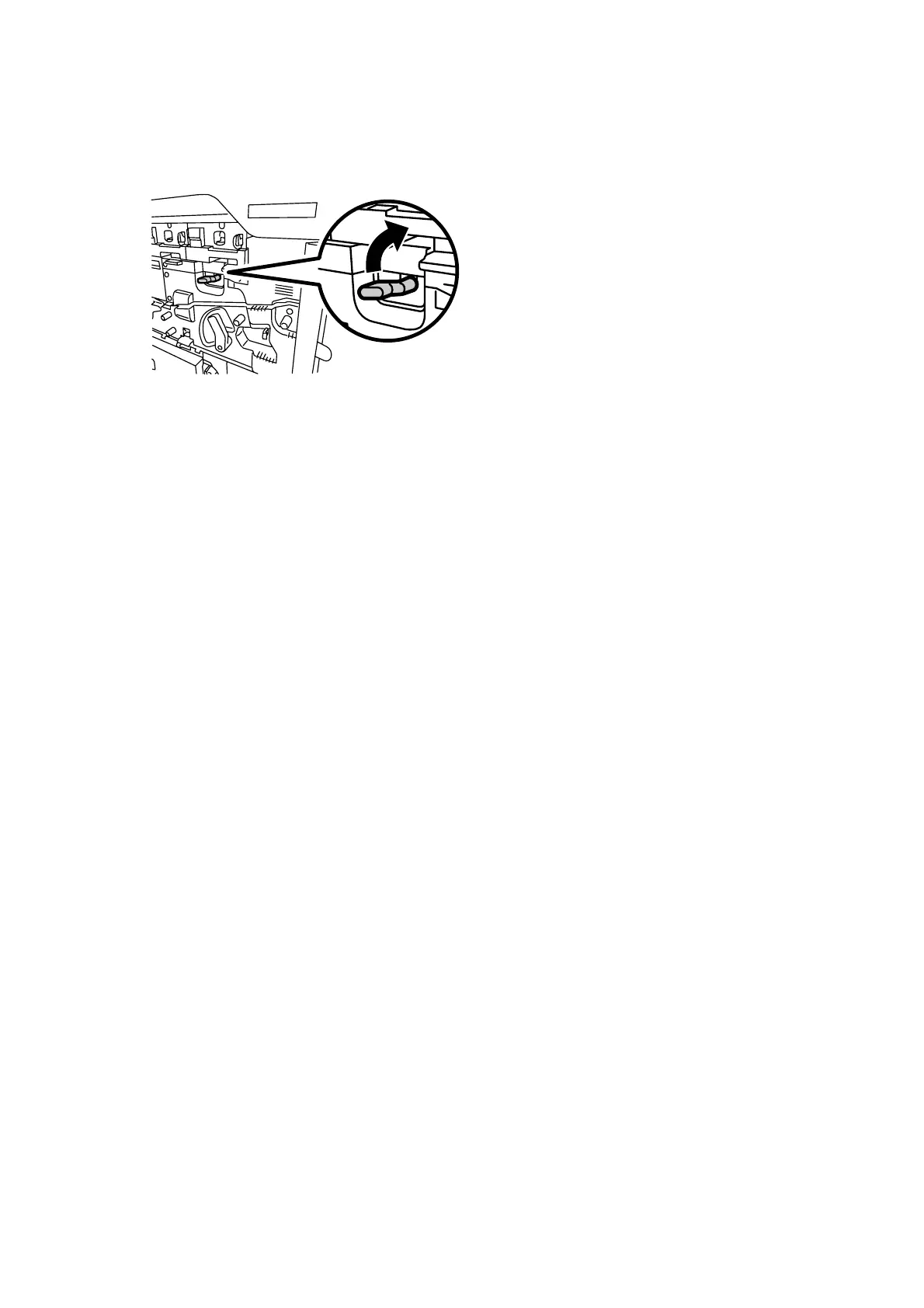

17. Pull up the ITB release lever.
CEZ115
18. Reconnect the power cord to the power source.
19. Turn the machine's main power switch to ON, close the left and right front
covers, and then wait for the machine to warm up.
20. Access the Adjustment Settings for Skilled Operators menu. (See p.18
"Accessing the Adjustment Settings for Skilled Operators".)
21. Reset the replaceable parts counter for the replaced drum unit. (See p.20
"Resetting the Replaceable Parts Counter".)
22. On the Adjustment Settings for Skilled Operators menu, press [0302: Execute
Process Initial Setting], and then select [All Colors].
23. Press [OK] and wait for the operation to finish.
This operation takes between one and two minutes during which time a
message appears on the control panel. Do not open the front covers while the
message is being displayed.
Execute this only once each time a drum is replaced.
To Next Page
