Ricoh M052 - Fusing Lamp

Fusing
SM 4-61 M052/M053/M054
Replacement
and
Adjustment

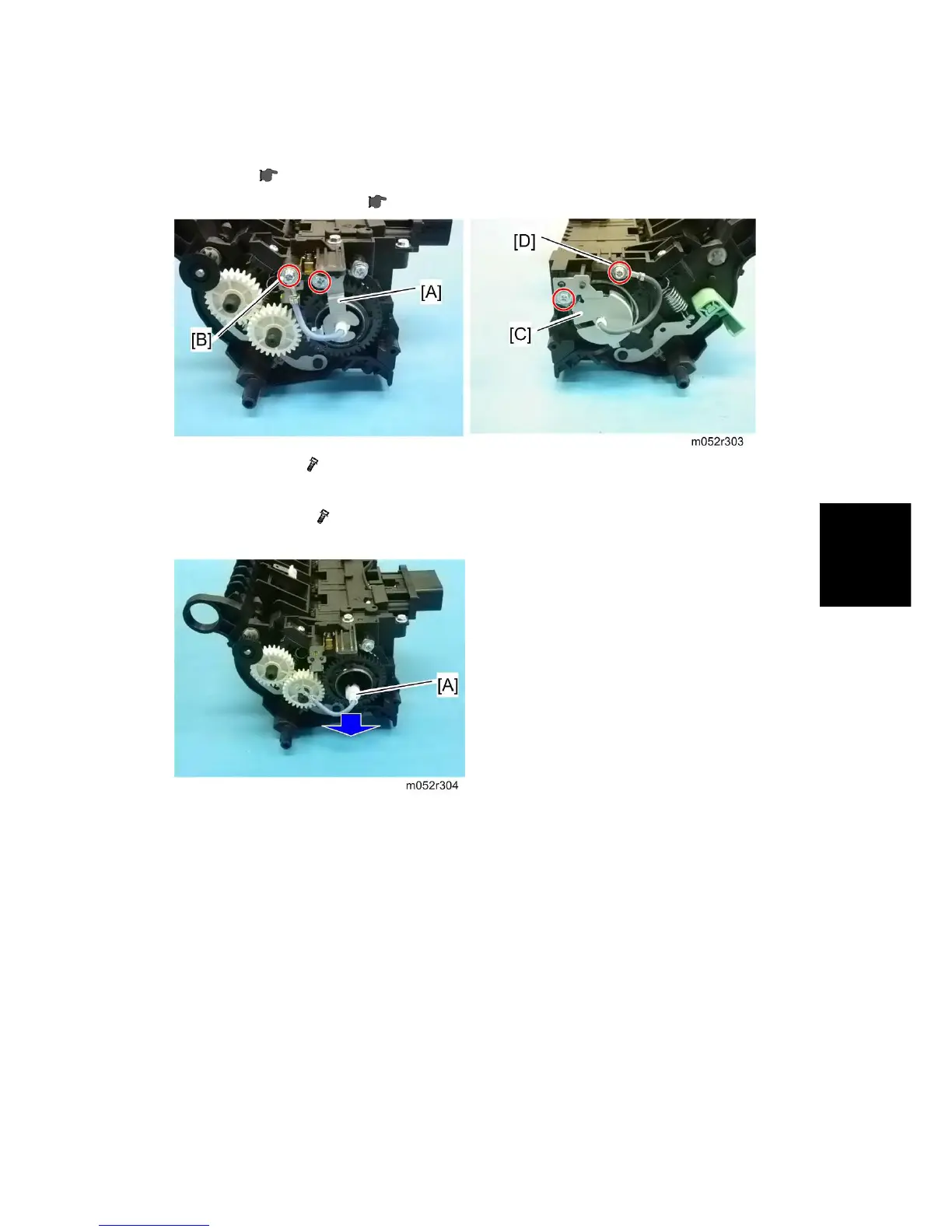

4.10.3 FUSING LAMP
1. Fusing unit ( p.4-59)
2. Fusing left and right covers (
p.4-60 "Hot Roller and Pressure Roller Sections")
3. Lamp left stay [A] (
x 1)
4. Remove the screw [B] on the left terminal of the fusing unit.
5. Lamp right stay [C] (
x 1)
6. Remove the screw [D] on the right terminal of the fusing unit.
7. Fusing lamp [A]
