Paper Feed Section

SM 4-52 D245/D246/D247

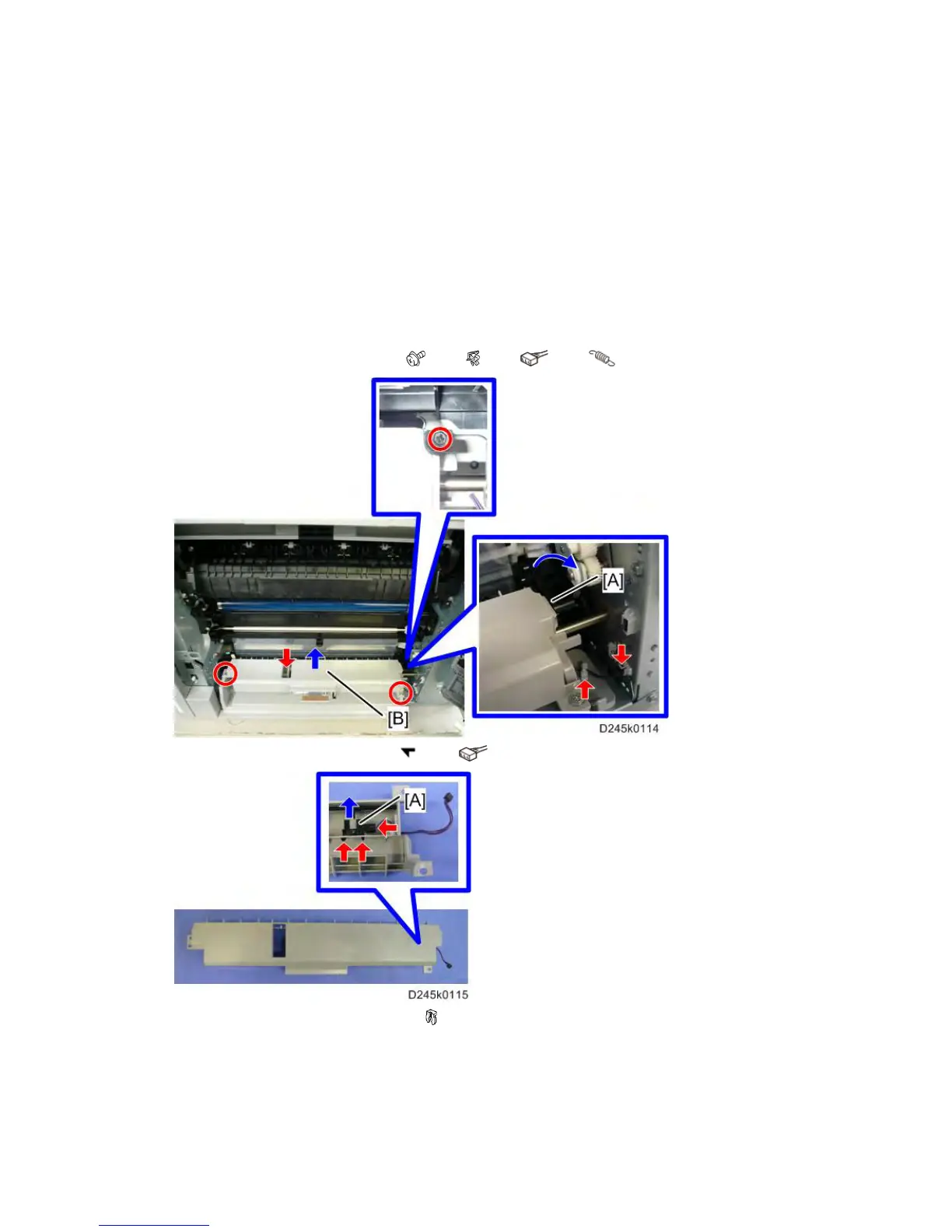

4.12.8 BY-PASS PAPER FEED ROLLER AND BY-PASS PAPER END

SENSOR

1. Right rear cover (page 4-5)

2. By-pass tray (page 4-51)

3. Rear cover (page 4-6)

4. By-pass paper feed clutch (page 4-66)

5. Open the right door.

6. Arm [A]

7. By-pass tray upper section [B] (

x 3, x 1, x 1, x 1)

8. By-pass paper end sensor [A] ( x 2, x 1)

9. By-pass paper feed roller unit [A] (

x 2)
