Ricoh MP 2014D - Vertical Transfer Rollers; Vertical Transfer Roller (Driving Side)

Covers and Roller
SM 5 D3B1
PAPER FEED
UNIT PB2020
(D3B1)
1.1.6 VERTICAL TRANSFER ROLLERS
Vertical Transfer Roller (Driving Side)
1. Paper tray (page 1)
2. Rear cover (page 1)

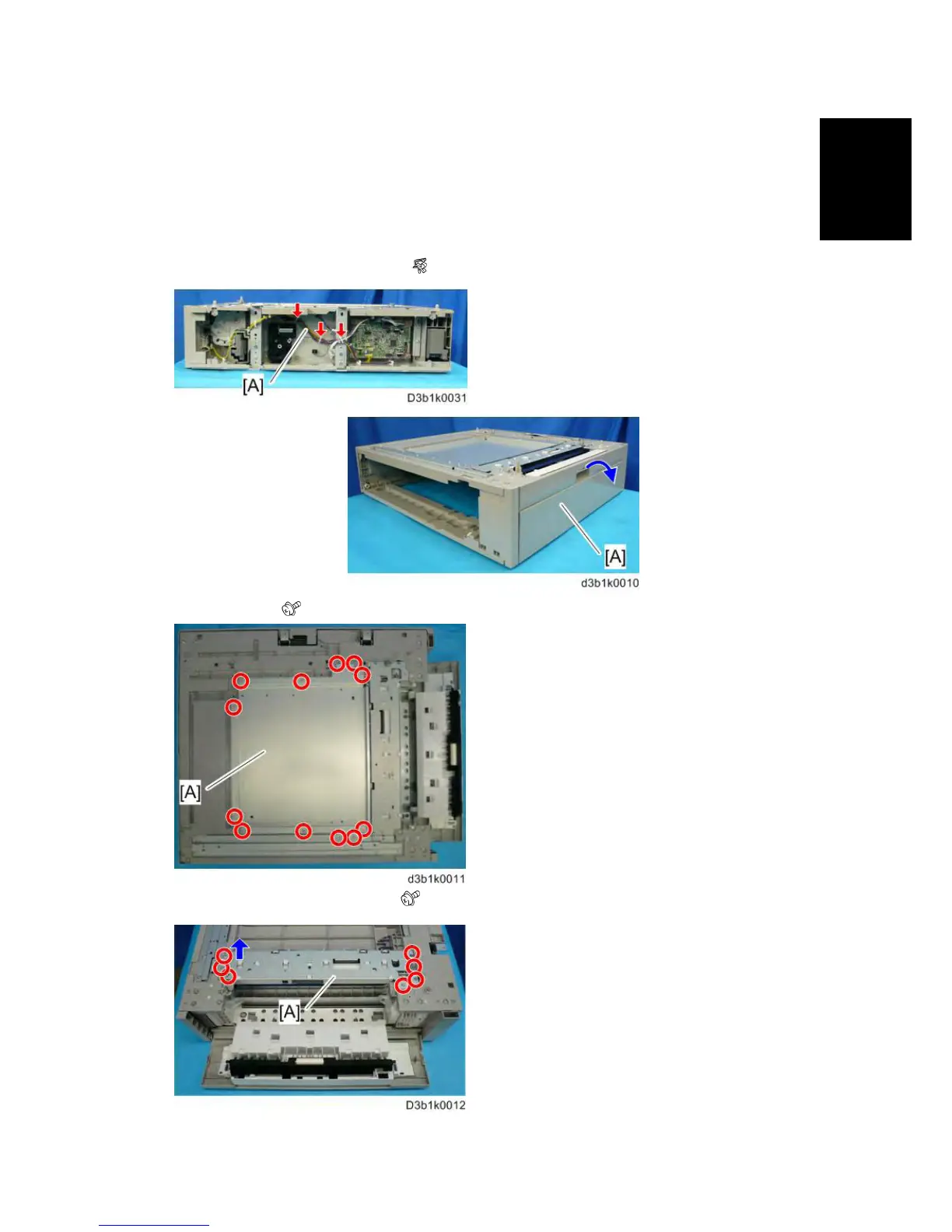

3. Release the sensor harness [A] (
x 3)
4. Open the right door [A].
5. Top cover [A] (
x 12)
6. Vertical transfer roller unit [A] (
x 7)
7. Vertical transfer roller cover [A]
