Ricoh MP 2014D - Scanner Unit

Scanner Unit
SM 4-22 D245/D246/D247
4.6.2 SCANNER UNIT
1. Top rear cover (page 4-21)
2. Right upper cover (page 4-5)
3. Left cover (page 4-5)
4. Right rear cover (page 4-5)
5. Operation panel (page 4-20)

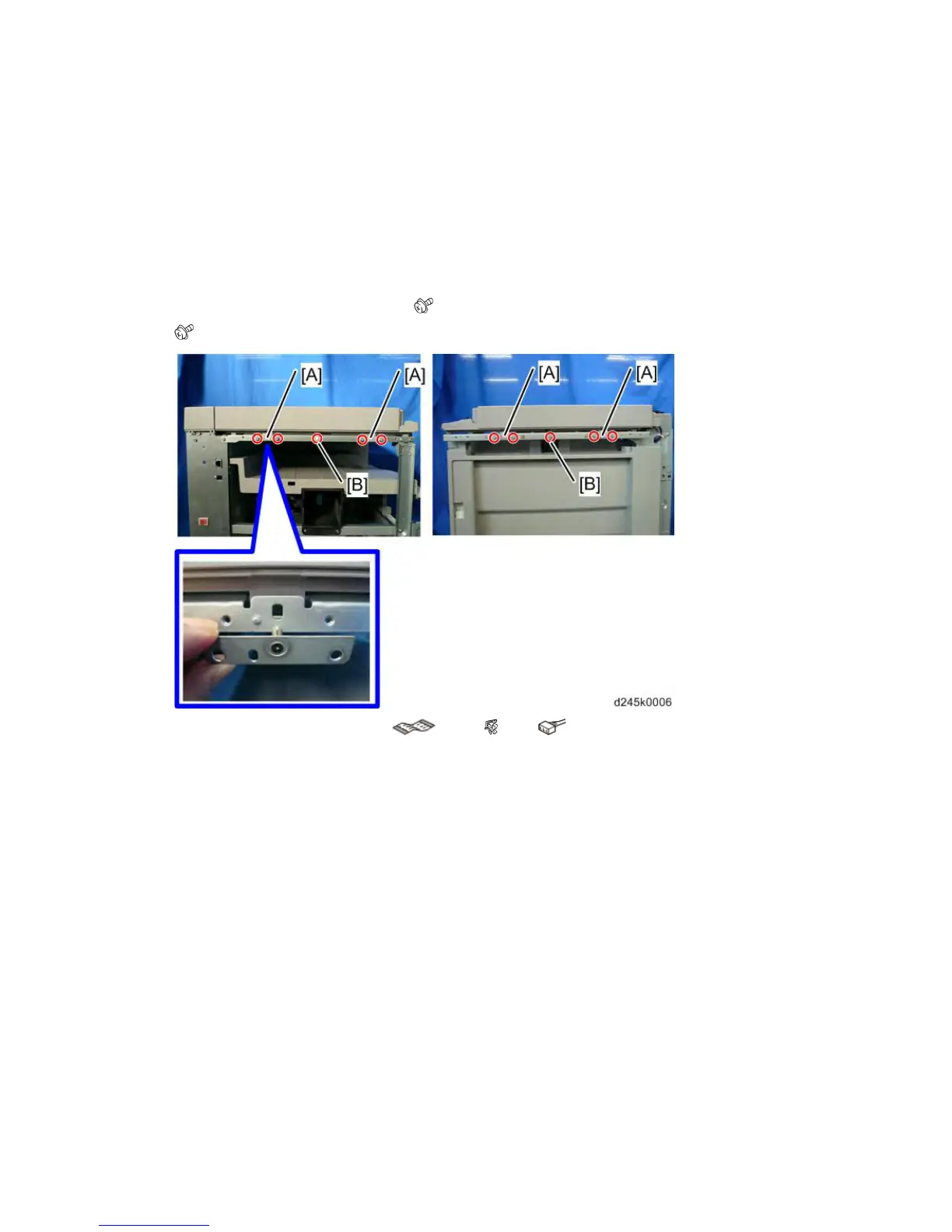

6. Remove the four brackets [A] (2
for each) and release the two ground parts [B] (1
for each).
7. Remove the scanner unit [A] (
x 1, x 4, x 3).
