ADF Unit
SM 4-14 D245/D246/D247

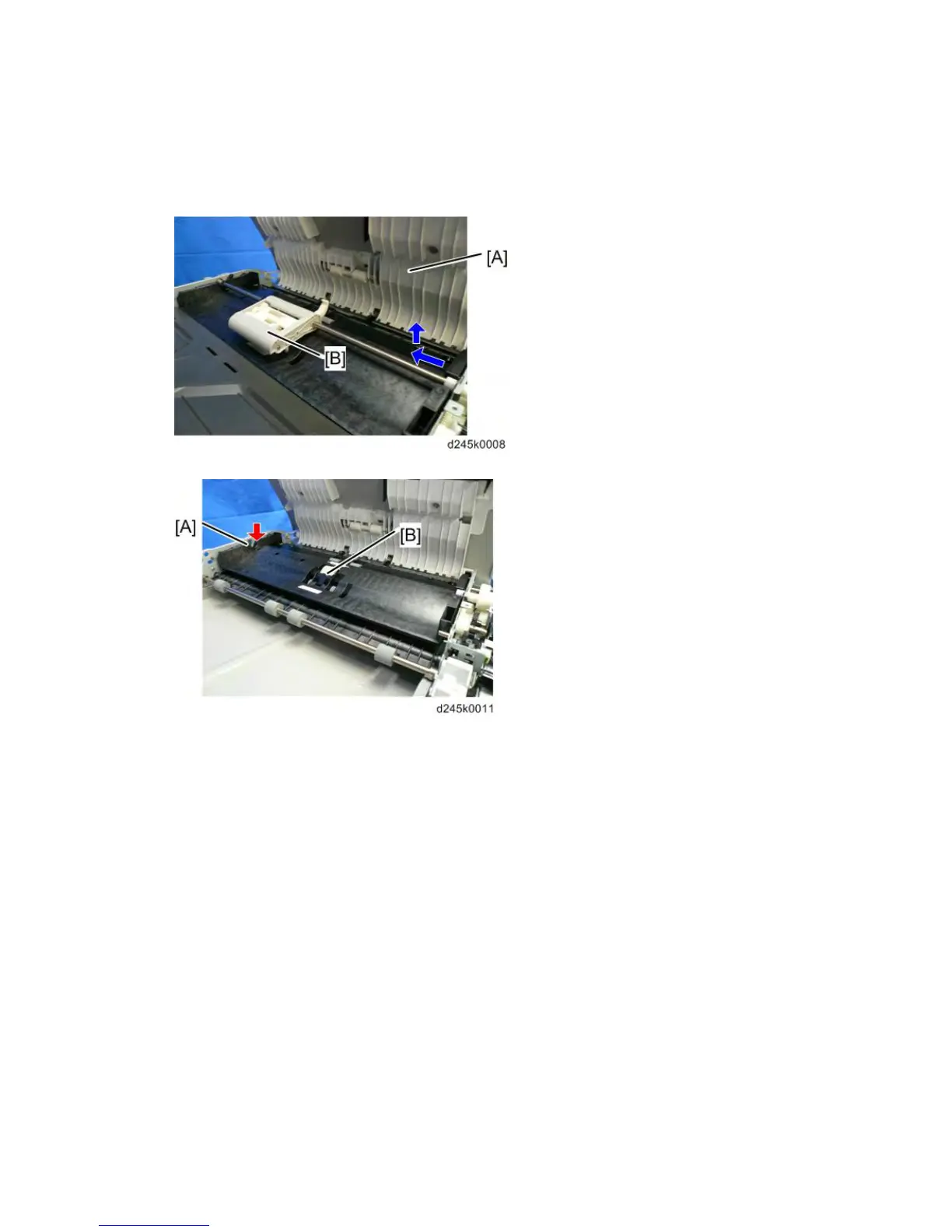

4.4.7 SEPARATION PAD
1. Open the ADF upper cover [A].
2. Original feed unit [B]
3. Push the lever [A] to pop up the separation pad [B].
