Electrical Components
SM 4-64 D245/D246/D247

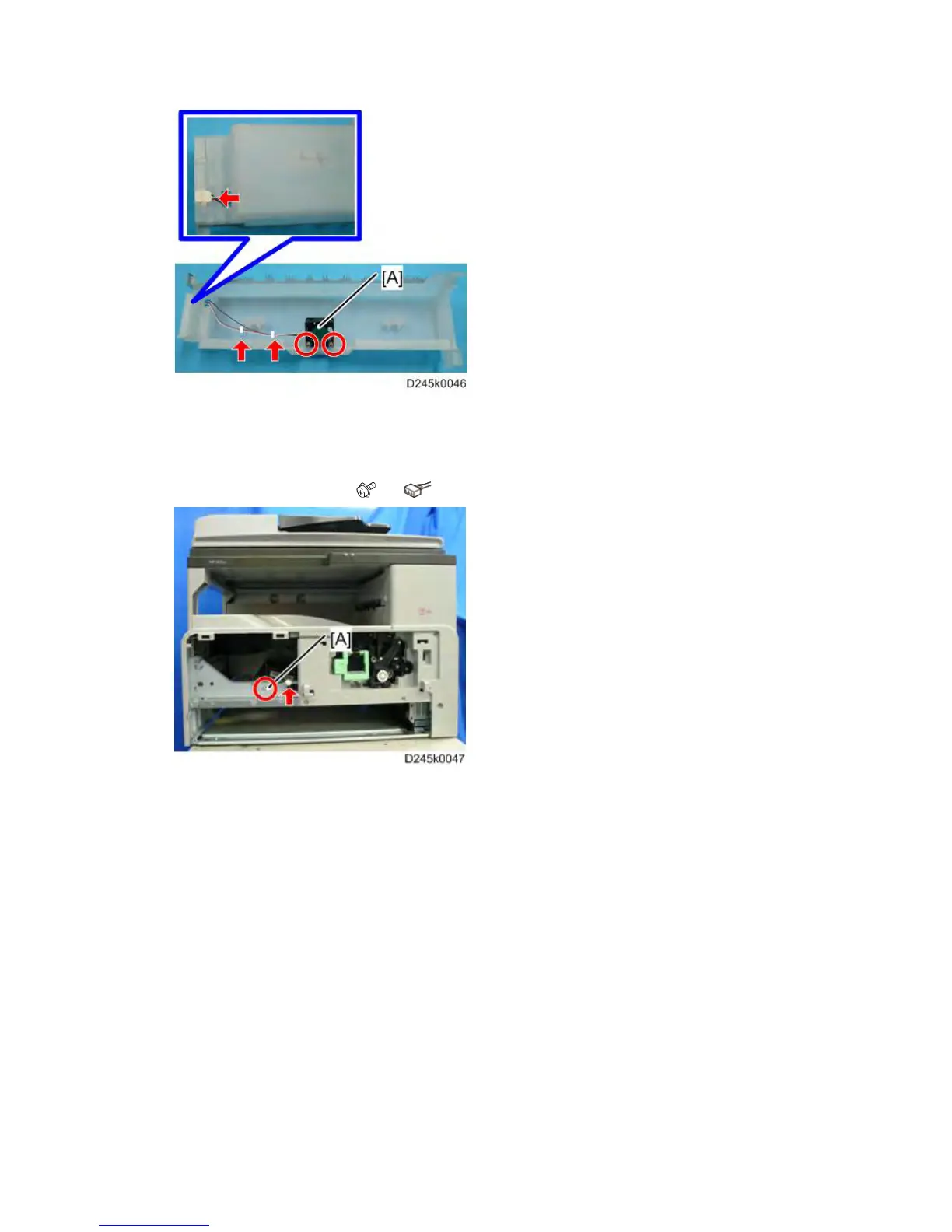

4.14.8 TEMPERATURE SENSOR
1. Front left cover (page 4-2)
2. Temperature sensor [A] (
x1, x 1)
