Ricoh MP 2014D - ADF Unit Component Replacement

ADF Unit
SM 4-9 D245/D246/D247
Replacement
and Adjustment
4.4 ADF UNIT
4.4.1 ADF UNIT

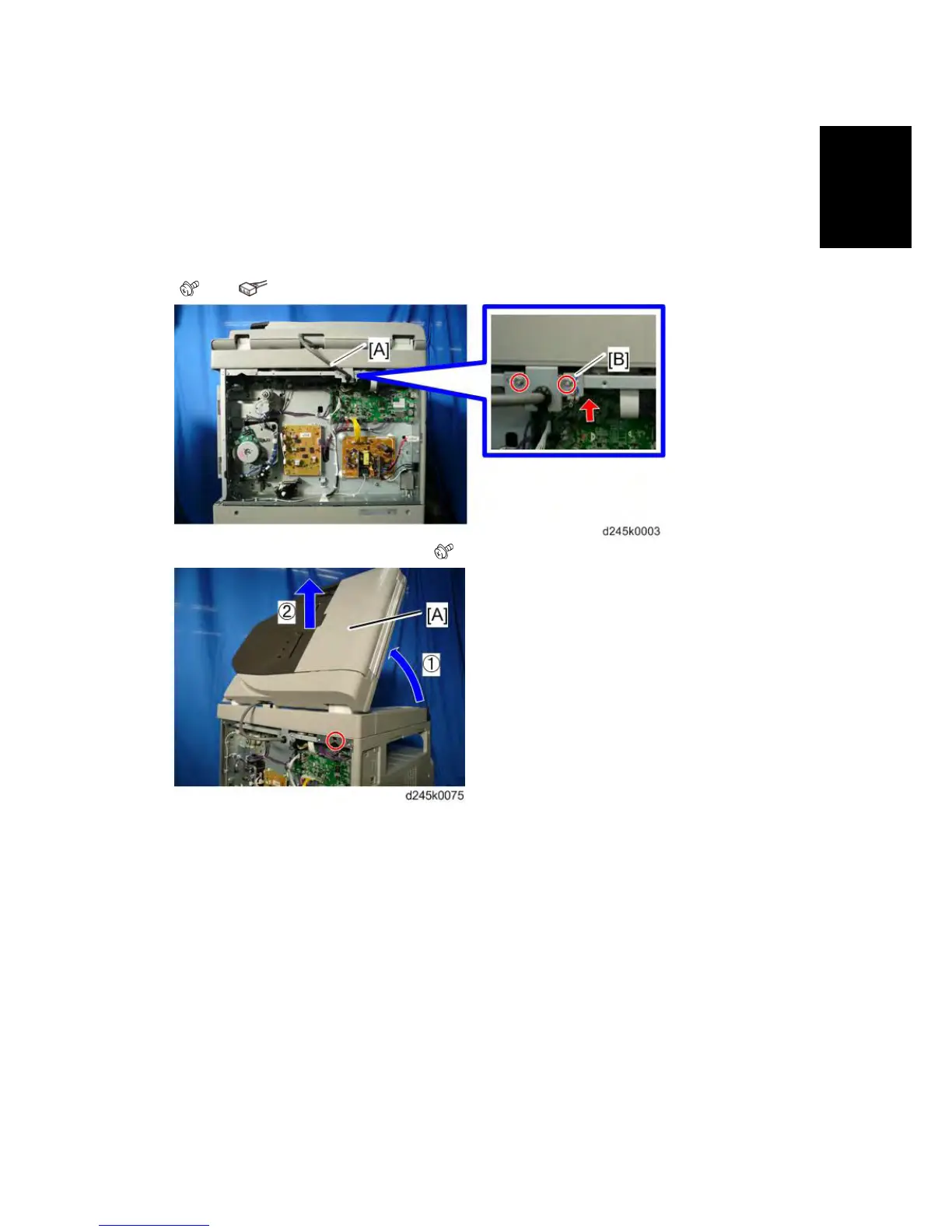

1. Rear cover (page 4-6)
2. Disconnect the ADF cable [A] and remove the ground plate [B]
(
x 2, x 1).
3. Open and remove the ADF unit [A] (
x 1).
