Ricoh MP 2014D - Duplex Unit and Electrical Components

Duplex Unit
SM 4-55 D245/D246/D247
Replacement
and Adjustment
4.13 DUPLEX UNIT
 Unplug the machine power cord before starting the following procedures.
 Duplex models – D246, D247
 Non-duplex model – D245

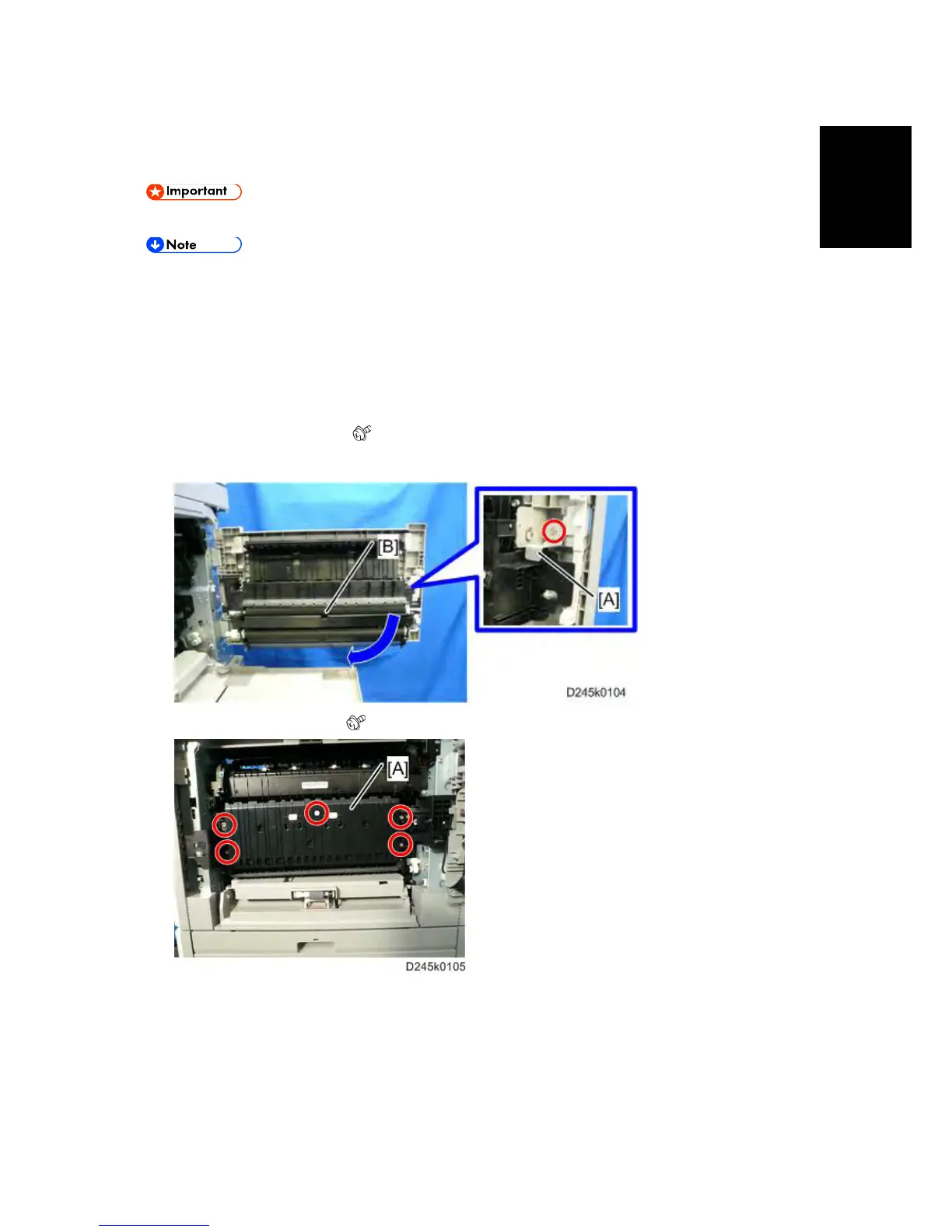

4.13.1 DUPLEX GUIDE PLATE
1. Right rear cover (page 4-5)
2. Open the right door.
3. Duplex unit bracket [A] (
x 1)
4. Open the transfer roller unit [B].
5. Duplex guide plate [A] ( x 5)
