Ricoh MP 2014D User Manual

Exterior Covers
SM 4-3 D245/D246/D247
Replacement
and Adjustment

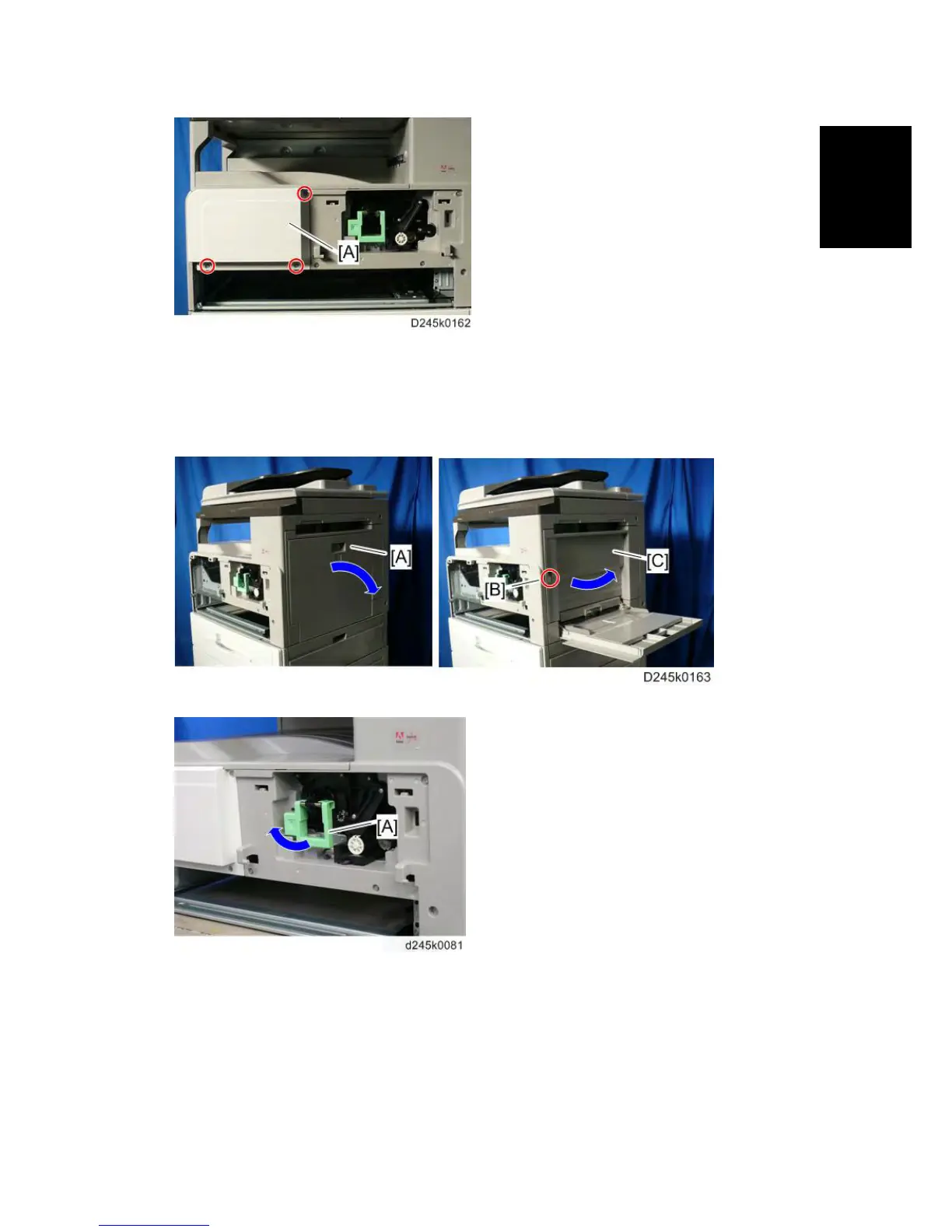

4.3.4 FRONT RIGHT COVER
1. Front left cover (page 4-2)
2. Open the by-pass tray [A], and then press the button [B] to open the right door [C].
3. Pull the toner bottle holder lever [A] upward.
4. Release the lock lever [A], and then pull the toner bottle holder [B].

Ricoh MP 2014D Specifications

General

Print Technology	Laser
Print Resolution	600 x 600 dpi
Scan Resolution	600 dpi
Paper Capacity	250 sheets
Duplex Printing	Manual
Connectivity	USB 2.0
Type	Monochrome
Maximum Paper Size	A3
Power Source	220 - 240 V, 50/60 Hz
Dimensions	587 x 581 x 461 mm
Weight	29 kg
Functions	Print, Copy, Scan
Copy Resolution	600 x 600 dpi
Print Speed	20 ppm
Copy Speed	20 cpm
Power Consumption	Approx. 1.2 kW
