6. Details
Overview

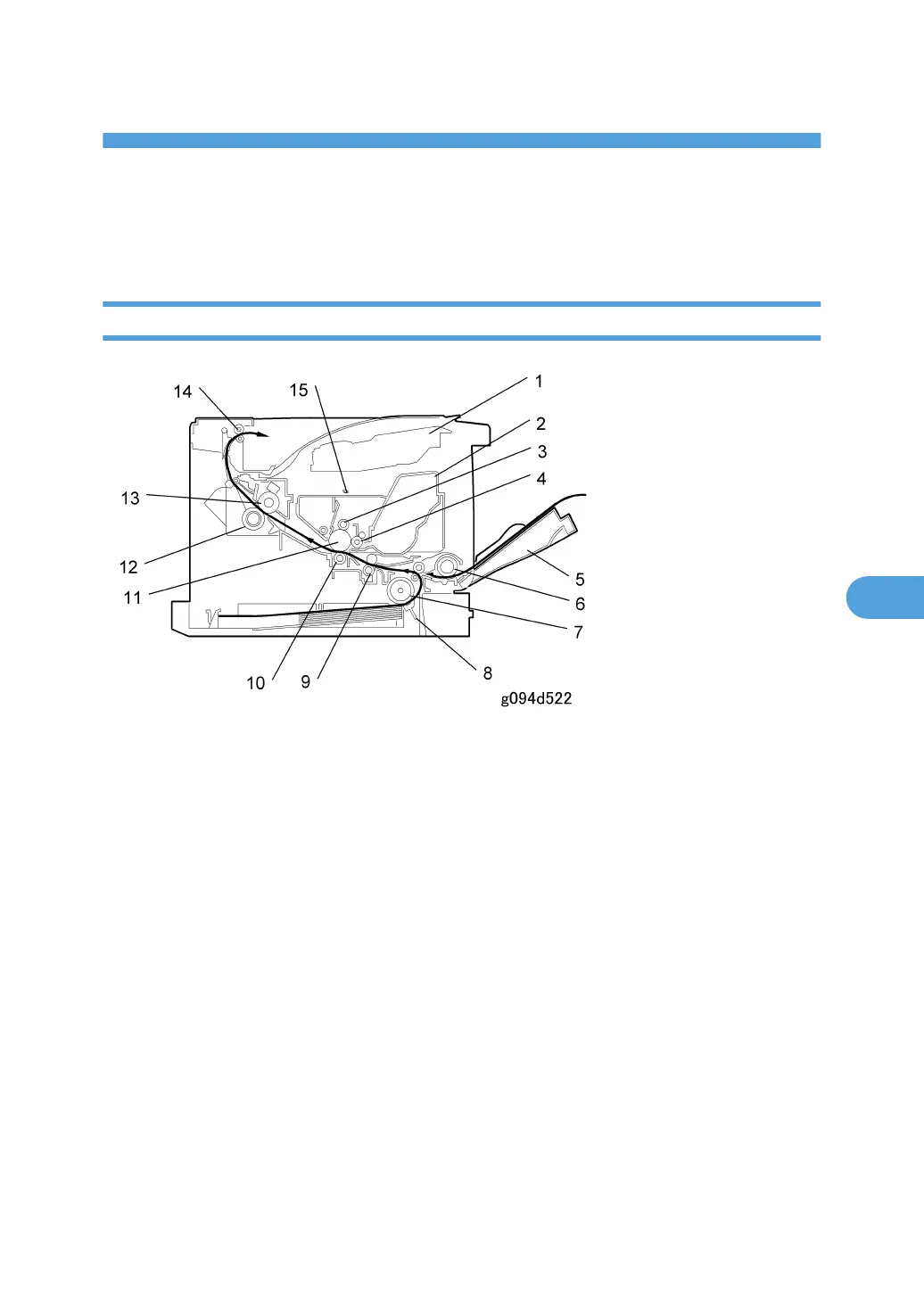

Mechanical Component Layout
1. Laser unit
2. Cartridge (AIO-type)
3. Charge roller
4. Development roller
5. By-pass feed tray
6. By-pass feed roller
7. Paper feed roller
8. Friction pad
9. Registration roller
10. Transfer roller
11. Drum
12. Pressure roller
13. Hot roller
14. Paper exit roller
15. Quenching lamp
