Clutches

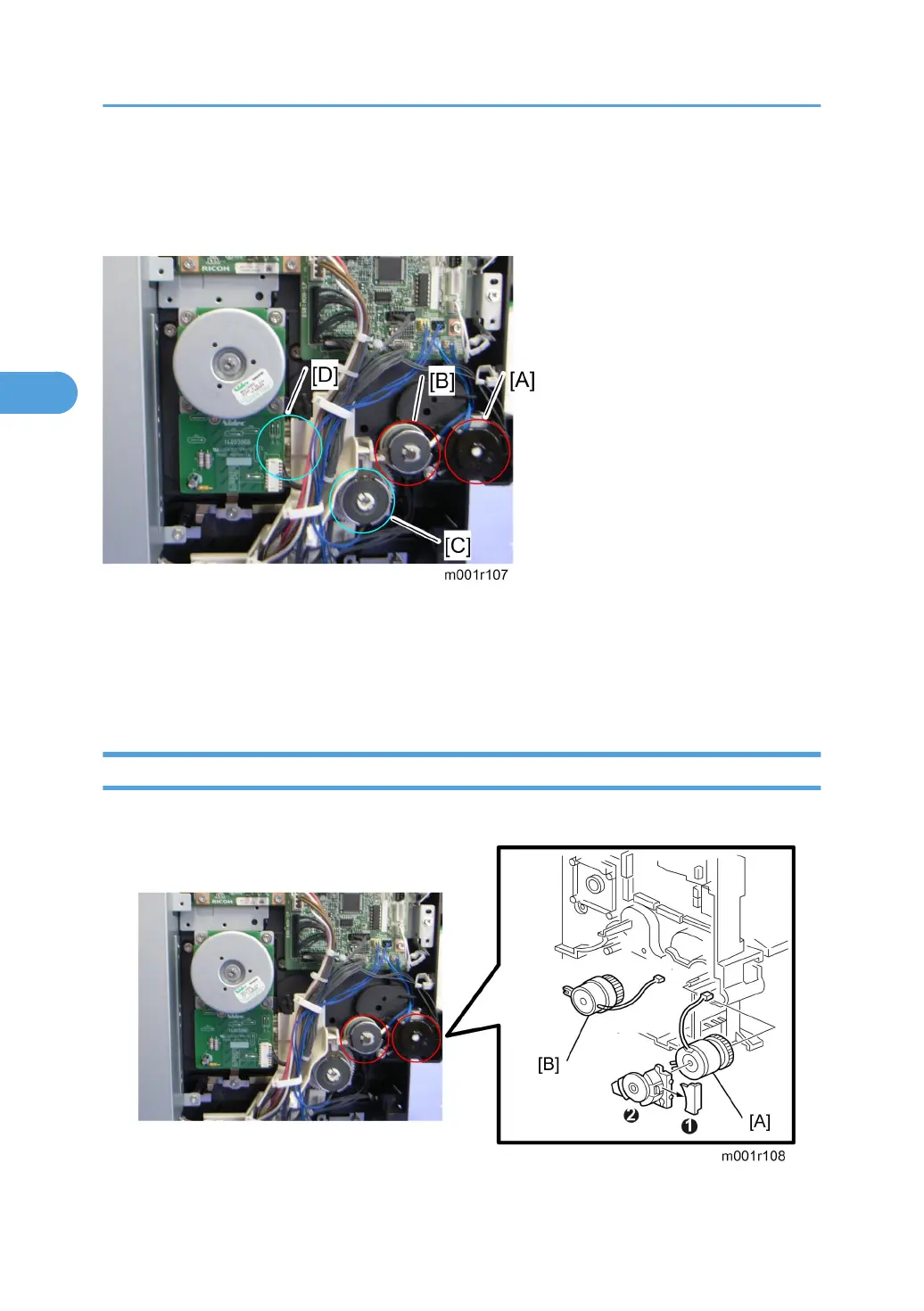

There are four clutches on the machine as following.
[A]: By-pass feed clutch
[B]: Relay clutch
[C]: Paper feed clutch
[D]: Registration clutch
By-pass Feed Clutch and Relay Clutch
1. Left cover (* Left Cover)
2. Holder Ê
