Ricoh SG 7100DN - Page 58

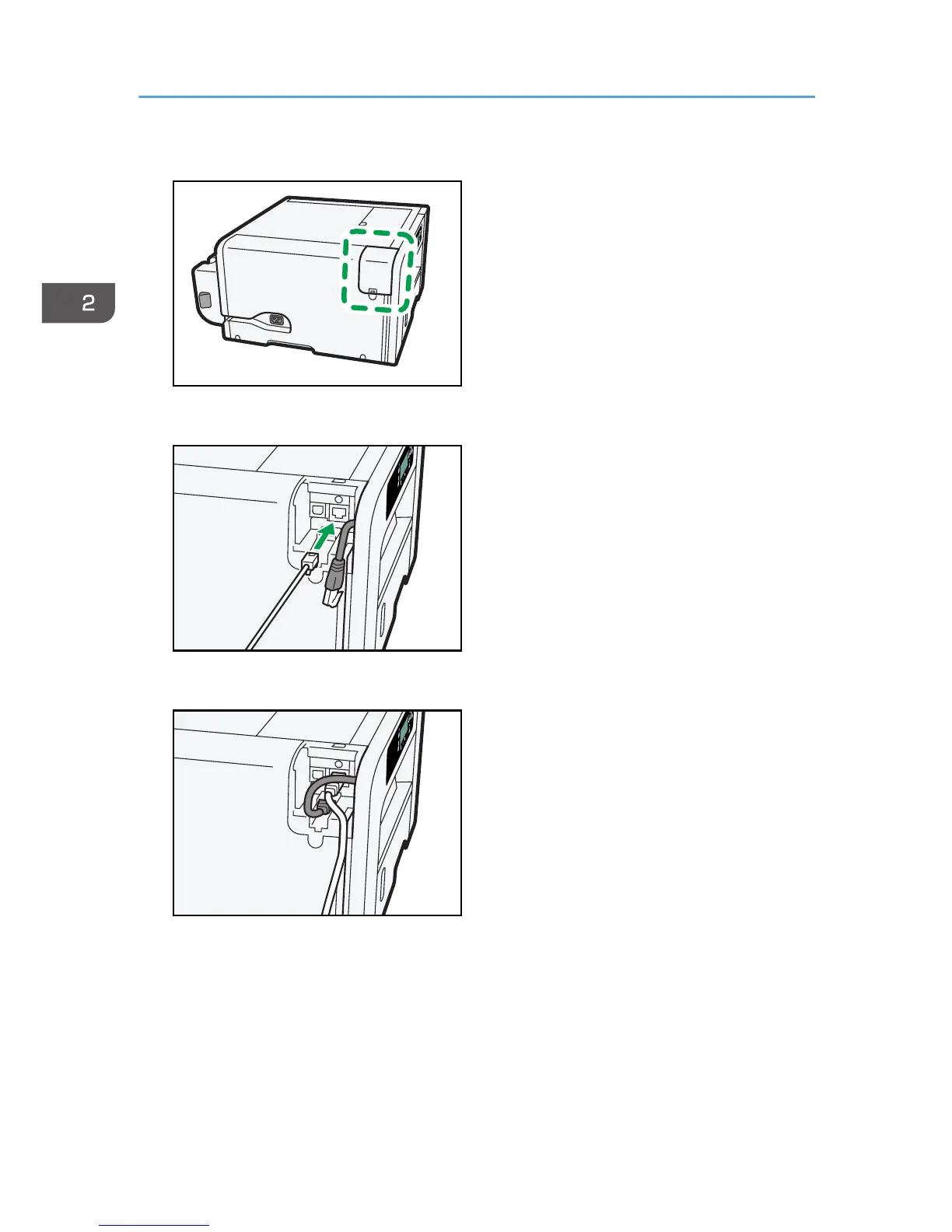

1. Open the port cover.
CHU091
2. Pull the wireless LAN cable out, and then plug the Ethernet cable into the port.
CHU093
3. Store the wireless LAN cable in its container.
CHU094
4. Connect the other end of the cable to the machine's network, such as to a hub.
Check the LEDs on the Ethernet port.
2. Preparing for Printing
56
